Steel Structural Fabrication Construction Prefabricated Metal Building Warehouse

300 square meters
$36.00/square meters 300-999 square meters
Steel Structural Fabrication Construction Prefabricated Metal Building Warehouse
Features Gallery Product Description Request A Quote
Standard: ASTM
Grade: Q235 Q355B, Q235 Q235B Q345
Type: Heavy, Light Steel Structure Frame
Application: Steel Structure Car Parking Lot
Tolerance: ±1%
Processing Service: Bending, Welding, Decoiling, Cutting, Punching
Delivery Time: 8-14 Days
Product Name: Steel Structure Building
Application Fields: Steel Structural Fabrication Construction
Purlin: C.Z Shape Steel Channel
Main Frame: Solid H-shape Steel Beam
Keyword: Steel Structural Steel Frame Workshop
Material: Q235B/Q345B Low Carbon Steel
Surface Treatment: Painted
Main Structure: Section Coulmn
Port: Qingdao Tianjin
High Light:

q235 40x50 metal building


q235b 40x50 metal building


q235 prefabricated metal building

Basic Infomation
Place of Origin: Shandong, China
Brand Name: JUHE
Model Number: Q235 Q355b
Payment & Shipping Terms
Packaging Details: steel structure warehouse/steel workshop/metal hanger shed: <br>1. Steel components are packaged with iron pallets at the factory with the coding number, which is convenient for customers to unload; small steel structures are bundled with iron wires and hu
Supply Ability: 20000 Ton/Tons per Month
Product Description
Products Description
Steel Warehouse Steel Structures Warehouse Steel Structure Warehouse Construction Design Popular Building
Steel Structural Fabrication Construction Prefabricated Metal Building Warehouse 0
Steel structure warehouse has features of high fire resistance, strong corrosion resistance. Steel structure warehouse is mainly refers to the main bearing component is composed of steel. Including the steel columns, steel beam, steel structure, steel roof truss.Each component using welds, bolts or rivets to connect. The roof and wall can be made of composite panel or veneer. Galvanized sheet metal can prevent rust and corrosion. The use of self-tapping screw can make the connection between the plates more closely, to prevent leakage. You can also use composite panel for roof and wall. The sandwich is polystyrene, glass fiber, rock wool, polyurethane. They have good thermal insulation, heat insulation, fire-retardant. The wall of the steel structure maintenance also can use brick wall. The cost of a brick wall is higher than galvanized steel roof and wall. The usage scale includes large-scale workshop, or warehouse, supermarkets, entertainment centers and modular steel structure garage.
Main Steel Frame
Q235, Q355 Welded H Section Steel
Q235, Q355 Welded H Section Steel
Secondary Frame
Q235 C and Z purlin
Knee brace
Q235 Angle Steel
Tie Rod
Q235 Circular Steel Pipe
Q235 Round Bar
Vertical and Horizontal Support
Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance system
Roof Panel
EPS Sandwich Panel / Glass Fiber Sandwich Panel /
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
Wall Panel
Sandwich Panel / Corrugated Steel Sheet
Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window
Sliding Sandwich Panel Door / Rolling Metal Door
Live load on Roof
In 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade
12 Grades
8 Grades
Structure Usage
Up to 50 years
Finishing Options
Vast array of colors and textures available
Paint Options
Alkyd paiting, two primary painting, two finish painting
(Primer 、Medium paint 、top coat, epoxy zinc etc.) Or Galvanized.
(1). Free to design architectural drawings for you;
(2). Features: Fast and flexible to assemble, safe, thermal and noise insulation, water proof and fire prevention;
(3). Cost-effective: Fast and easy installation greatly shorten the construction time which reduce the costs;
(4). Durability: The whole structure is easy in maintenance, which can be used for more than 50 years.
(5). Perfect design: Perfect design completely avoids leaks and water seepage. Meanwhile, it's also in line with the national level of fire prevention.
(6). Carrying capacity: can resists the impact of strong wind and seismic performance and bears heavy snow loads
Details Images
Steel Structural Fabrication Construction Prefabricated Metal Building Warehouse 1
Steel Structural Fabrication Construction Prefabricated Metal Building Warehouse 2

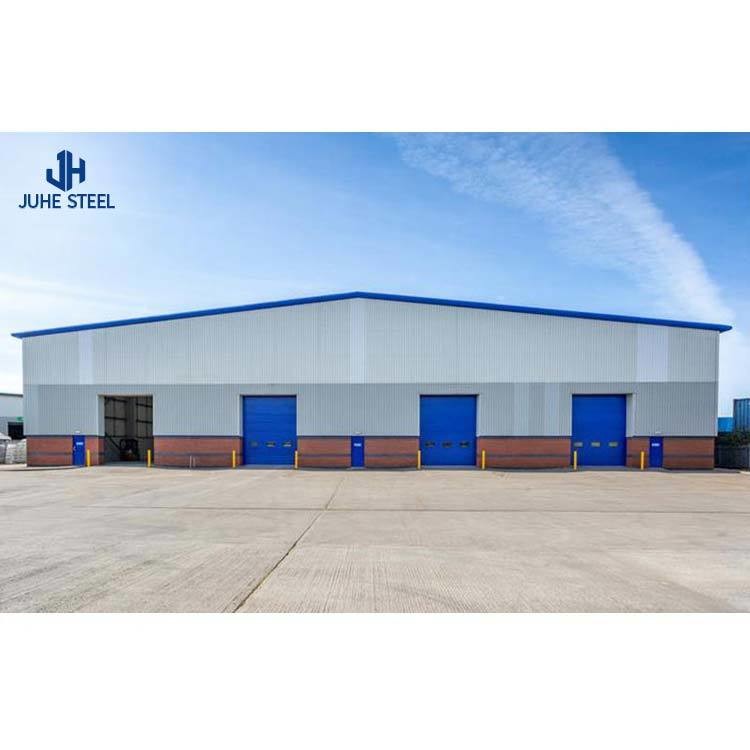

Steel structure warehouse

- Custom size and color- Light weight, high strength
- Easy assemble, short construction period
- Reusable, easy move, low cost

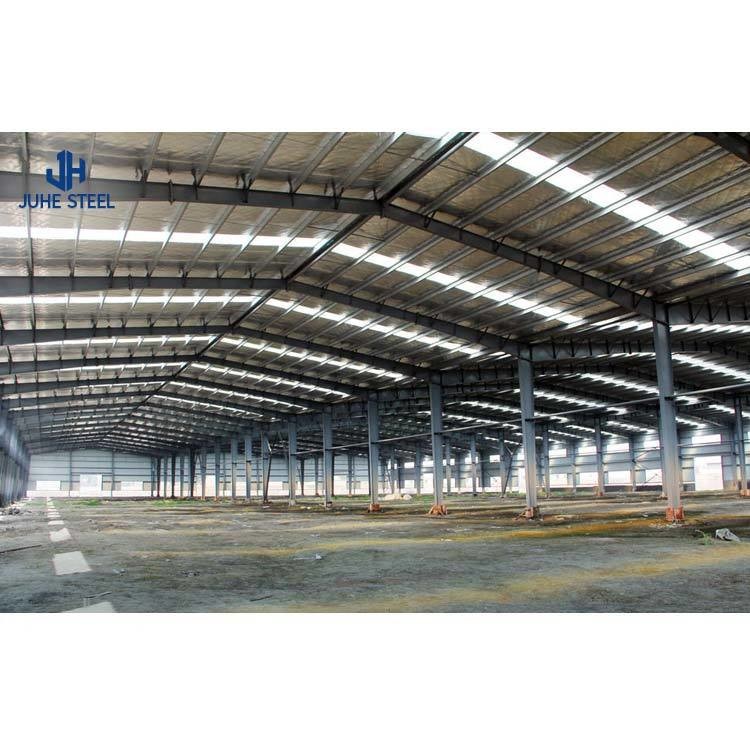

Steel structure workshop

- Custom size and color- Light weight, high strength, large span
- Easy build, easy move, easy maintenance
- Wildly use, can be used as a warehouse, workshop, factory, hangar, office building, etc.
Steel Structural Fabrication Construction Prefabricated Metal Building Warehouse 3
Steel Structural Fabrication Construction Prefabricated Metal Building Warehouse 4
Why Choose Us to offer steel structure workshop building:

1.We have a group of professional engineers, most of whom has more than 10 years experiences in architecture field. our company has got a various of experiences in design, manufacture, installation and so on. The work staff have excellent skills. Some of them had helped customers to install the warehouse around the world. 2. We will offer one stop service. construction drawing,calculation sheet will be offered to help you get construction permit. Foundation design could be free made if you need. We could make 3D drawings to show the view. What's more, Installation drawings will be offered and Steel structure column,beams will be marked number on it to help you install. 3. We will send you extra bolts,purlins,panels incase any damage when install.
4. Efficiency is our pursuit. Every inquiry ,emails will be replied immediately. Every questions will be paid high attention. 5. We also have possessed more than 40 sets of large precise and domestically advanced processing equipments, including large gantry planing machines, automatic submerged arc welding machines, assembling machines, slitters, shot blasting machines and soon. 6.We will offer details packing list for every container when load so it will be easier to unload. 7. "Moral personality decides product quality." is our guarantee to the products. "Customers come first." is our everlasting pursuit. Believe your choose, we'll give you a satisfied answer.
Steel Structure
Steel Structural Fabrication Construction Prefabricated Metal Building Warehouse 5
Shandong Juhe Steel Co. LTD
Was founded in 2013. After more than 10 years of steady development, It has now become a high-tech, diversified, export-oriented international private enterprise integrating research and development, design, production, installation and construction and service. manufacture enterprises in China, also has waterproof anti-corrosion insulation engineering, construction curtain wall engineering, building engineering construction general contracting qualification, be included in the construction industry modernization production base in Shandong province. The core competitiveness of the company comes from the unremitting pursuit of technological breakthroughs. Now, there are more than 100 senior technical personnel of various kinds, and many universities and scientific research institutions to establish cooperative relations. With the help of internal and external intellectual resources, relying on steel structure, we continue to innovate in various aspects and achieve new breakthroughs.
Steel Structural Fabrication Construction Prefabricated Metal Building Warehouse 6
Steel Structural Fabrication Construction Prefabricated Metal Building Warehouse 7
Steel Structural Fabrication Construction Prefabricated Metal Building Warehouse 8

Customer Album

Steel Structural Fabrication Construction Prefabricated Metal Building Warehouse 9
Steel Structural Fabrication Construction Prefabricated Metal Building Warehouse 10
Steel Structural Fabrication Construction Prefabricated Metal Building Warehouse 11

Steel Structure fixed packing, loading, transportation, unloading the matters needing attention:

(1) The lifting large there must be a person responsible for the use of fixture, suitable, strictly abide by the
rules of lifting, to prevent the occurrence of vibration, impact, deformation or damage, fall in the hoisting process.

(2) At the time of loading, there must be a special supervision, check car number and packing, the car pile
up securely, and to increase the necessary binding component loosening, prevent the loss.

(3) Remained stable in the transport process, the vehicle at the time of shipment, on the long, wide, high object transport, must
be trained pilots, escort personnel responsible for, and mark is arranged on a vehicle.

(4) No rough handling, loading and unloading personnel handling, weight, size should be familiar with the components, and check the horse sling, rigging, prevent accidents.

(5) The member to the construction site, timely organization of unloading, stacking area.

(6) The crawler crane carrying member, should pay attention to the surrounding terrain, air condition, prevent the crawler crane overturning and component collision.

Steel Warehouse Steel Structures Warehouse Steel Structure Warehouse Construction Design Popular Building

Q1: How long does it take to get my building?
A: Lead time is vary, but typically 2 weeks of drawings and 6-8 weeks for delivery(depending on complexity)

Q2: What are the benefits of steel construction?
A: 1-Durable and with long lifespan.
2-Short construction period than concrete and wooden building.
3-Low cost and reusable.
4-High strength and light weight, has good seismic performance.
5-Widely used for multi-purpose buildings.

Q3: Why choose JU HE?
A: At JU HE, the customer is the first priority. We don't pull any gimmicks. We are veteran owned and
operated business, unmatched in customer service. We have more than 10 years of metal building experience. We are also very reputable manufacture and can answer your questions regarding any tape of construction project.We care about your needs and value your business.

Q4: How can l get the quotation of the project?
A: lf you have the drawing, we can offer you our quotation accordingly. lf youhave no design, our engineer will design for you to confirm. And then offer you a quotation.

Q5: Do you offer designing service for us?
A: Yes, we can provide full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (X steel) and etc. We can design complex industrial building like office building,
supermarket, auto dealer shop, shipping mall, hotel etc.

Q6: Do you provide samples?
A: Yes, we could offer the sample for free but do not pay for the cost of transportation.

Q7: What is your terms of payment ?
A: L/C, T/T, and Western Union.

Q8: How about your quality control?
A: We have our own professional quality control team with rich experience and advanced inspection equipment. Also we are willing to accept any other the third inspection part to control.

Q9: Can you provide the installation help?
A: We will provide detailed instruction photos and videos to you. If it is necessary,we will send professional engineers to do the construction guidance, and some skilled workers to help for installation. However, the visa fee, air tickets,accommodation, wages will be provided by buyers.

Dear Customer

If you have drawings, welcome to share drawings with us,quotation will be done based on your drawings. Our excellent design team will design the steel structure workshop warehouse for you.
If you give the following information, we will give you an satisfactory drawing.

1.Location (where will be built? ):which country? which city?
2.Size: Length*width* Eave height _____mm*_____mm*_____mm.
3.Wind load(max. Wind speed)_____kn/m2, _____km/h, _____m/s.
4.Snow load(max. Snow height) _____kn/m2, _____mm, temperature range?
5.Anti-earthquake _____level.
6.Brickwall needed or not. If yes, 1.2m high or 1.5m high? or other?
7.Thermal insulation. If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.
8.Door quantity & size _____units, _____(width)mm*_____(height)mm.
9.Window quanity &size _____units, _____(width)mm*_____(height)mm.
10.Crane needed or not If yes, _____units, max. Lifting weight____tons; Max.Lifting height _____m.
