Name: Prefabricated Steel Structural Warehouse Metal Buildings Standard AiSi Welding Service
Brand: JUHE
SKU: Q235/Q235B/Q355/Q355B
Price: 30.00 USD
Availability: InStock
Rating: 4.6 (162 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Standard: AiSi

Grade: Steel

Type: Heavy, Light Steel Structure Frame

Application: Steel Structure Bridge

Tolerance: ±1%

Processing Service: Bending, Welding

Delivery Time: 8-14 Days

Roofing: Sandwich Panel. Single Steel Sheet

Material: Q235/Q235B/Q355/Q355B

Product Name: Steel Structure Building

Window: Aluminum Alloy Window

Door: Door

Main Structure: Low Carbon Steel Q235 Q345

Use: Warehouse Workshop Hangar Garage

Structure Type: Light Steel Structre

Application Fields: Steel Structural Fabrication Construction

High Light:

welding warehouse metal

welding prefabricated metal warehouse

welding service warehouse metal

Basic Infomation

Place of Origin: Shandong, China

Brand Name: JUHE

Model Number: Q235/Q235B/Q355/Q355B

Payment & Shipping Terms

Gallery

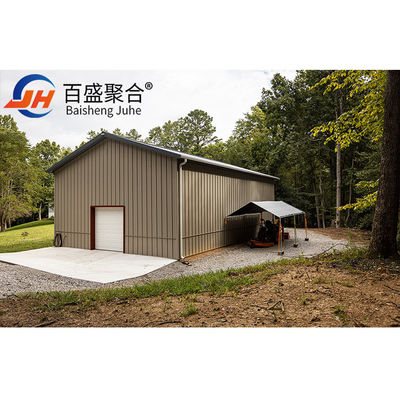

Prefabricated Steel Structural Warehouse Metal Buildings Standard AiSi Welding Service

Product Description

Products Description

Prefab Steel Building Prefabricated Steel Structural Warehouse Metal Buildings Warehouse Construction Steel Shed And Warehouse

Steel structure storehouse features of high fire resistance, strong corrosion resistance. Steel structure storehouse is mainly refers to the main bearing component is composed of steel. Including the steel columns, steel beam, steel structure, steel roof truss.Each component using welds, bolts or rivets to connect. The roof and wall can be made of composite panel or veneer. Galvanized sheet metal can prevent rust and corrosion. The use of self-tapping screw can make the connection between the plates more closely, to prevent leakage. You can also use composite panel for roof and wall. The sandwich is polystyrene, glass fiber, rock wool, polyurethane. They have good thermal insulation, heat insulation, fire-retardant. The wall of the steel structure maintenance also can use brick wall. The cost of a brick wall is higher than galvanized steel roof and wall. The usage scale includes large-scale workshop, or warehouse, supermarkets, entertainment centers and modular steel structure garage.

Specification
Items			Specification
Main Steel Frame	Column	Q235, Q355 Welded H Section Steel
Main Steel Frame		Beam	Q235, Q355 Welded H Section Steel
Secondary Frame	Purlin	Q235 C and Z purlin
		Knee brace	Q235 Angle Steel
		Tie Rod	Q235 Circular Steel Pipe
		Brace	Q235 Round Bar
		Vertical and Horizontal Support	Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance system	Roof Panel	EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
Maintenance system		Wall Panel	Sandwich Panel / Corrugated Steel Sheet
Accessories	Window	Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window
		Door	Sliding Sandwich Panel Door / Rolling Metal Door
		Rainspout	PVC
Live load on Roof			In 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade			12 Grades
Earthquake-resistance			8 Grades
Structure Usage			Up to 50 years
Finishing Options			Vast array of colors and textures available
Paint Options			Alkyd paiting, two primary painting, two finish painting (Primer 、Medium paint 、top coat, epoxy zinc etc.) Or Galvanized.

Advantages
(1). Free to design architectural drawings for you;
(2). Features: Fast and flexible to assemble, safe, thermal and noise insulation, water proof and fire prevention;
(3). Cost-effective: Fast and easy installation greatly shorten the construction time which reduce the costs;
(4). Durability: The whole structure is easy in maintenance, which can be used for more than 50 years.
(5). Perfect design: Perfect design completely avoids leaks and water seepage. Meanwhile, it's also in line with the national level of fire prevention.
(6). Carrying capacity: can resists the impact of strong wind and seismic performance and bears heavy snow loads

Details Images

Steel structure storehouse

- Custom size and color- Light weight, high strength
- Easy assemble, short construction period
- Reusable, easy move, low cost

Steel structure storehouse

- Custom size and color- Light weight, high strength, large span
- Easy build, easy move, easy maintenance
- Wildly use, can be used as a warehouse, workshop, factory, hangar, office building, etc.

Why Choose Us to offer steel structure building:

1.We have a group of professional engineers, most of whom has more than 10 years experiences in architecture field. our company has got a various of experiences in design, manufacture, installation and so on. The work staff have excellent skills. Some of them had helped customers to install the warehouse around the world. 2. We will offer one stop service. construction drawing,calculation sheet will be offered to help you get construction permit. Foundation design could be free made if you need. We could make 3D drawings to show the view. What's more, Installation drawings will be offered and Steel structure column,beams will be marked number on it to help you install. 3. We will send you extra bolts,purlins,panels incase any damage when install.

4. Efficiency is our pursuit. Every inquiry ,emails will be replied immediately. Every questions will be paid high attention. 5. We also have possessed more than 40 sets of large precise and domestically advanced processing equipments, including large gantry planing machines, automatic submerged arc welding machines, assembling machines, slitters, shot blasting machines and soon. 6.We will offer details packing list for every container when load so it will be easier to unload. 7. "Moral personality decides product quality." is our guarantee to the products. "Customers come first." is our everlasting pursuit. Believe your choose, we'll give you a satisfied answer.

1. Primary Framing

Main steel frame is mainly composed of steel beams, steel columns, steel trusses and other components made of section steel and steel plate, and adopts rust removal and anti-rust process such as shot blasting, painting and galvanizing. Welding, bolts or rivets are usually used to connect each member or component. JUHE’s pre-engineered steel structure building is custom-designed to meet your exact requirements. The most common primary framing systems are shown below. Practically any frame geometry is possible. Consult JUHE for your specific requirements.

2. Secondary Framing (Bracing, Z and C section purlin)

Purlin, tie bar and bracing are secondary structural members used to support the wall and roof cladding. Secondary members as purlin, tie bar, column bracing and horizontal bracing connect the main frame and help in resisting part of the longitudinal loads that are applied on the building such as wind and earthquake loads. Steel purlin is available in high grade steel conforming to GB/T 2518-2008, Q235B/Q345B Grade or equivalent, available in 1.8 mm. 2.0 mm, 2.2 mm, 2.5 mm and 3.0 mm thickness. The purlin come with a galvanized sheet. Column bracing is a connecting member set between two adjacent columns to ensure the overall stability of the building structure, improve lateral stiffness and transfer longitudinal horizontal force. Column bracing will be round steel or angle steel according to the building need.

3.Roof and wall cladding system

JUHE offers a complete line of Roof and wall steel sheet, sandwich panel, and their related accessories, steel cover, trims, eave gutter, curved eave cover, wall flashing for a wide range of building applications.Variety of profiles, base metal, metal substrates and coatings for its sheet. The metal sheet are used as roof and wall panels, interior roof and partition panel, etc. Steel sheet, its base sheet is usually be galvanized sheet or aluminium zinc sheet with organic coating. It has the advantages of good corrosion resistance, bright color, beautiful appearance, convenient processing and forming, and has the original strength of the steel plate and low cost. The thickness of steel sheet usually be 0.3mm-0.7mm and used in different building and requirement. Sandwich panel is composite insulation panel made by two sides steel sheet and heat insulated core material through binder (or foam). The core can be EPS (polystyrene ), fiberglass wool, rock glass wool and PU (polyurethane), thickness 50mm, 60mm, 75mm, 100mm, 150mm, 200mm, etc.

3. Steel Decking Floor

The pressed steel plates supporting the floor concrete are called profiled plates, also called floor bearing board. The steel decking board are widely used in multi-storey buildings such as power plant, exhibition hall, steel structure workshop, cement warehouse, steel structure office, airport terminal, railway station, stadium, concert hall, grand theater, large supermarket, logistics center, Olympic venues and sports venues and other steel structure buildings. It can adapt to the main steel structure rapid construction requirements, can provide a firm platform in a short time, and can take flow repetitive construction operation, laid a number of floors decking board, and pouring concrete slab.

Steel Structure

Shandong Juhe Steel Co. LTD

Was founded in 2013. After more than 10 years of steady development, It has now become a high-tech, diversified, export-oriented international private enterprise integrating research and development, design, production, installation and construction and service. manufacture enterprises in China, also has waterproof anti-corrosion insulation engineering, construction curtain wall engineering, building engineering construction general contracting qualification, be included in the construction industry modernization production base in Shandong province. The core competitiveness of the company comes from the unremitting pursuit of technological breakthroughs. Now, there are more than 100 senior technical personnel of various kinds, and many universities and scientific research institutions to establish cooperative relations. With the help of internal and external intellectual resources, relying on steel structure, we continue to innovate in various aspects and achieve new breakthroughs.

Steel Structure fixed packing, loading, transportation, unloading the matters needing attention:

(1) The lifting large there must be a person responsible for the use of fixture, suitable, strictly abide by the
rules of lifting, to prevent the occurrence of vibration, impact, deformation or damage, fall in the hoisting process.

(2) At the time of loading, there must be a special supervision, check car number and packing, the car pile
up securely, and to increase the necessary binding component loosening, prevent the loss.

(3) Remained stable in the transport process, the vehicle at the time of shipment, on the long, wide, high object transport, must be trained pilots, escort personnel responsible for, and mark is arranged on a vehicle.

(4) No rough handling, loading and unloading personnel handling, weight, size should be familiar with the components, and check the horse sling, rigging, prevent accidents.

(5) The member to the construction site, timely organization of unloading, stacking area.

(6) The crawler crane carrying member, should pay attention to the surrounding terrain, air condition, prevent the crawler crane overturning and component collision.

FAQ

Prefab Steel Building Prefabricated Steel Structural Warehouse Metal Buildings Warehouse Construction Steel Shed And Warehouse

Q1: How long does it take to get my building?

A: Lead time is vary, but typically 2 weeks of drawings and 6-8 weeks for delivery(depending on complexity)

Q2: What are the benefits of steel construction?

A: 1-Durable and with long lifespan.

2-Short construction period than concrete and wooden building.

3-Low cost and reusable.
4-High strength and light weight, has good seismic performance.
5-Widely used for multi-purpose buildings.

Q3: Why choose JU HE?

A: At JU HE, the customer is the first priority. We don't pull any gimmicks. We are veteran owned and
operated business, unmatched in customer service. We have more than 10 years of metal building experience. We are also very reputable manufacture and can answer your questions regarding any tape of construction project.We care about your needs and value your business.

Q4: How can l get the quotation of the project?

A: lf you have the drawing, we can offer you our quotation accordingly. lf youhave no design, our engineer will design for you to confirm. And then offer you a quotation.

Q5: Do you offer designing service for us?

A: Yes, we can provide full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (X steel) and etc. We can design complex industrial building like office building,
supermarket, auto dealer shop, shipping mall, hotel etc.

Q6: Do you provide samples?

A: Yes, we could offer the sample for free but do not pay for the cost of transportation.

Q7: What is your terms of payment ?

A: L/C, T/T, and Western Union.

Q8: How about your quality control?

A: We have our own professional quality control team with rich experience and advanced inspection equipment. Also we are willing to accept any other the third inspection part to control.

Q9: Can you provide the installation help?

A: We will provide detailed instruction photos and videos to you. If it is necessary,we will send professional engineers to do the construction guidance, and some skilled workers to help for installation. However, the visa fee, air tickets,accommodation, wages will be provided by buyers.

Dear Customer

If you have drawings, welcome to share drawings with us, quotation will be done based your drawings. Our excellent design team will design the steel structure workshop warehouse for you. If you give the following information, we will give you an satisfactory drawing.

1 Location (where will be built? ) which country? which city?
2 Size: Length*width* Eave height _____mm*_____mm*_____mm
3 wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. Snow height) _____kn/m2, _____mm, temperature range?

5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high? or other?
7 thermal insulation If yes, EPS,fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quantity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. Lifting weight____tons; Max.Lifting height _____m
