Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction

180 square meters
MOQ
$30.00/square meters 180-9999 square meters
Price
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction
Features Gallery Product Description Request A Quote
Features
Specifications
Standard: AiSi
Grade: Steel
Type: Heavy, Light Steel Structure Frame
Application: Steel Structure Bridge
Tolerance: ±1%
Processing Service: Bending, Welding
Delivery Time: 8-14 Days
Roofing: Sandwich Panel. Single Steel Sheet
Material: Q235/Q235B/Q355/Q355B
Product Name: Steel Structure Building
Window: Aluminum Alloy Window
Door: Door
Main Structure: Low Carbon Steel Q235 Q345
Use: Warehouse Workshop Hangar Garage
Structure Type: Light Steel Structre
Application Fields: Steel Structural Fabrication Construction
High Light:

q235 steel structure warehouse

,

q355 steel structure warehouse

,

q235 industrial steel warehouse

Basic Infomation
Place of Origin: Shandong, China
Brand Name: JUHE
Model Number: Q235/Q235B/Q355/Q355B
Payment & Shipping Terms
Product Description
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 0
Steel structure warehouses features of high fire resistance, strong corrosion resistance. Steel structure storehouse is mainly refers to the main bearing component is composed of steel. Including the steel columns, steel beam, steel structure, steel roof truss.Each component using welds, bolts or rivets to connect.

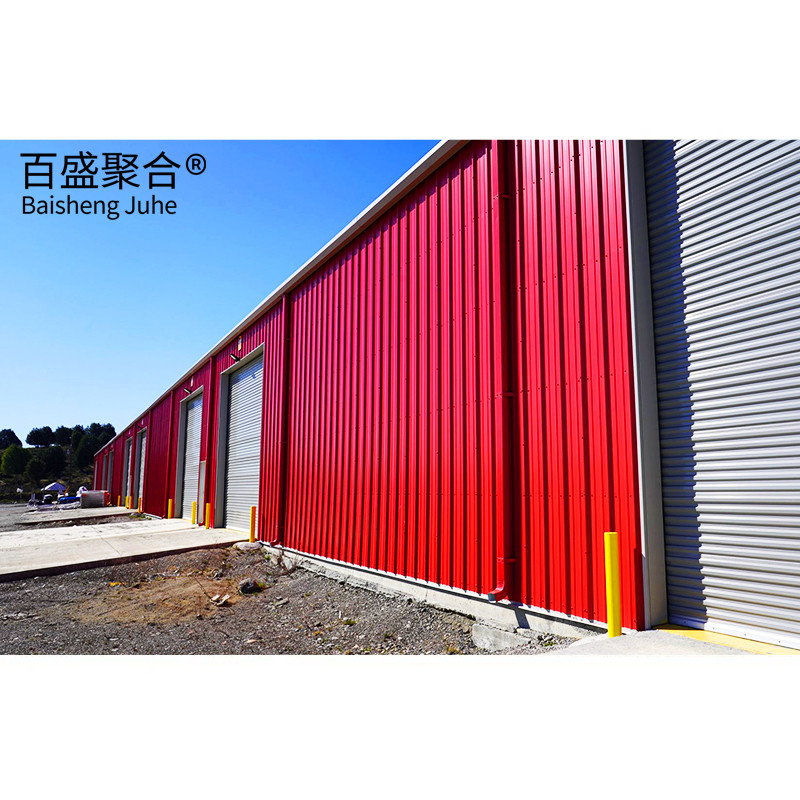

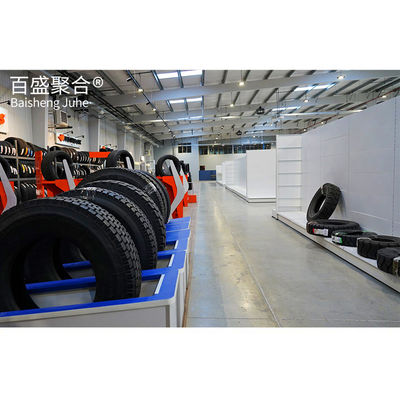

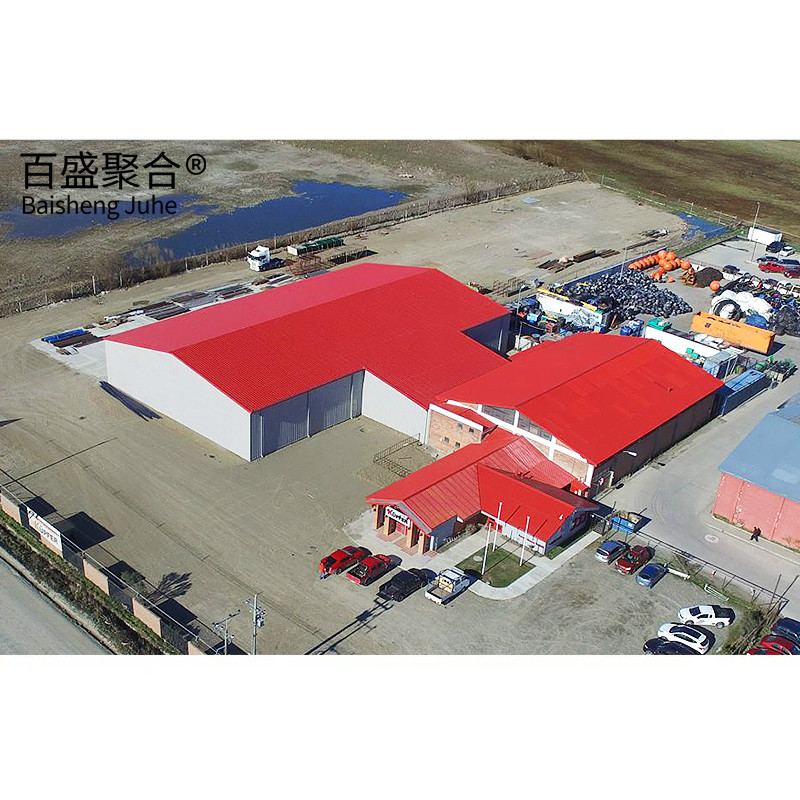

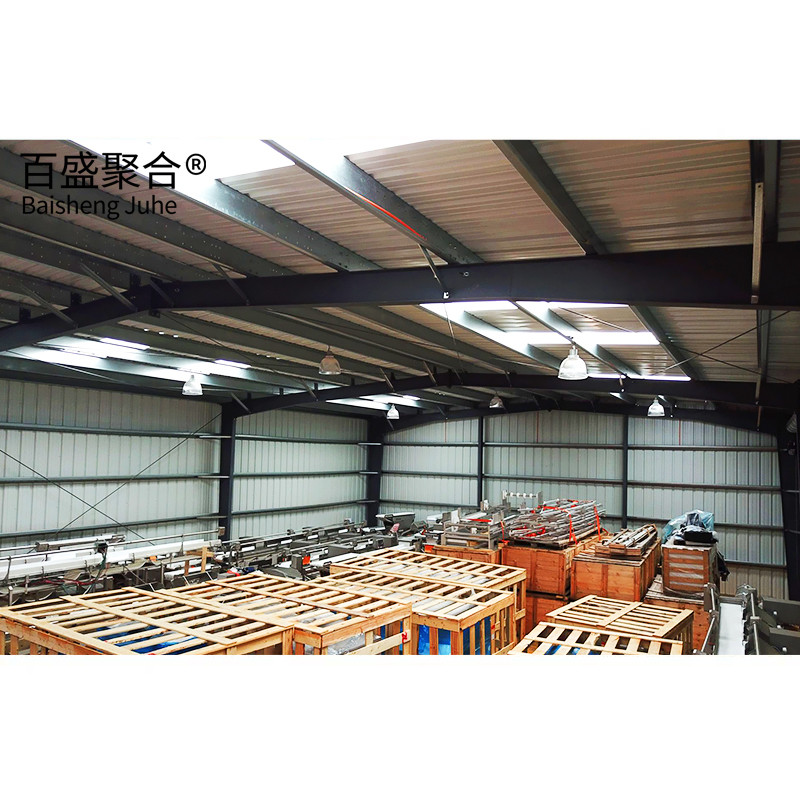

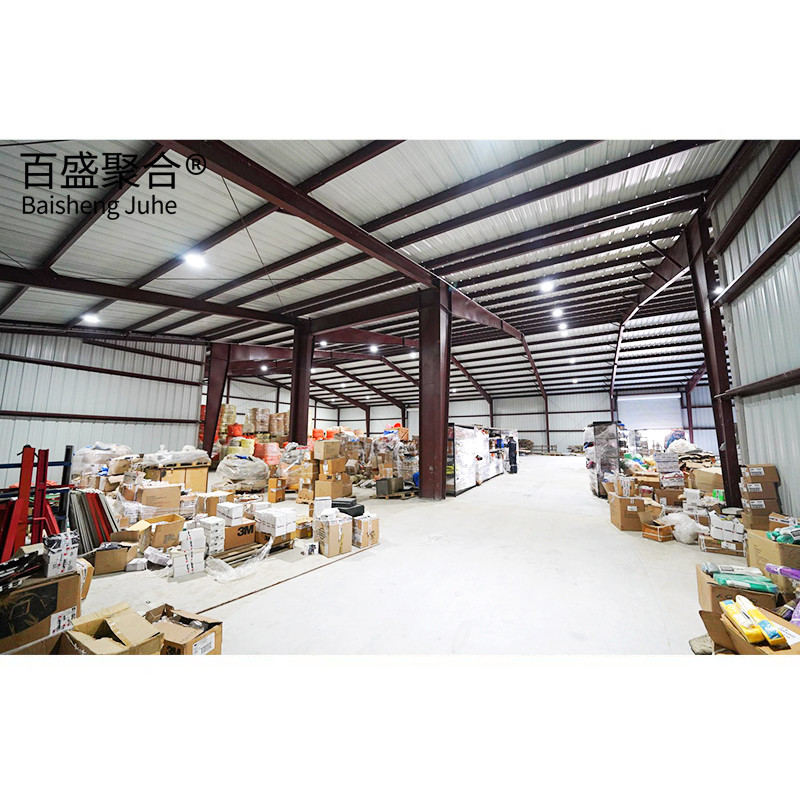

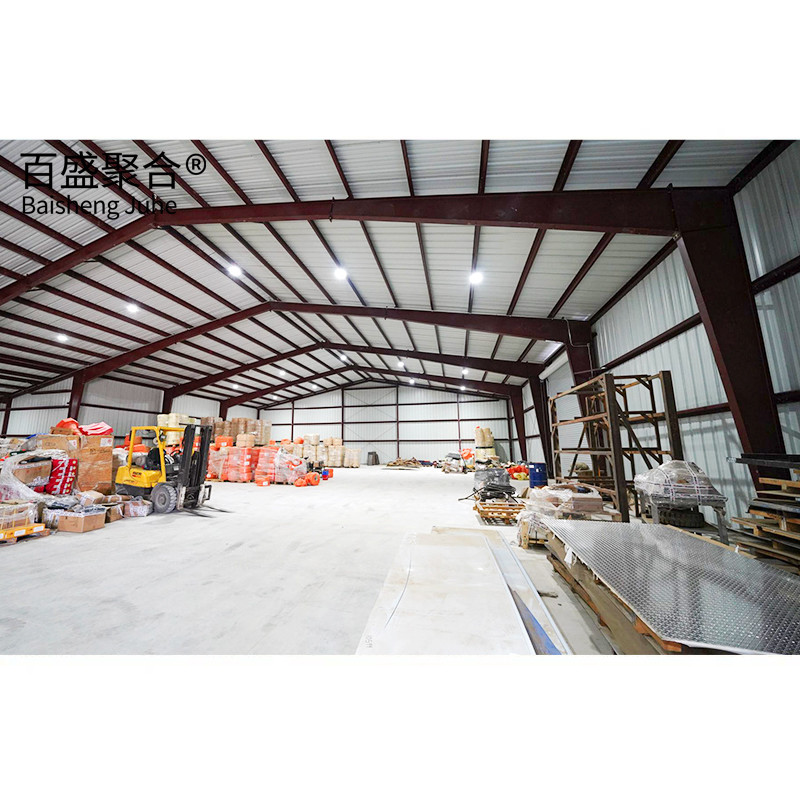

Project cases
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 1
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 2
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 3
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 4
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 5
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 6
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 7
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 8
Frame System
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 9
Primary Framing
Juhe offers metal building frames main categories:CS Clear Span, MS Multi Span, CL Classic, HS High Span, SST Single Slope, SSS Single Slope, LT Lean-To, Customo Designs. Our primary framing acts as a single unit after assembly that will support the load of the finished structure while transferring the weight to the foundation.
1.Solid Built-up I-beam main frame construction; 2.high strength plate steel; 3.Submerged Arc/welded Frames.
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 10
CS CLEAR SPAN
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 11
MS MULTI SPAN
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 12
CL CLASSIC
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 13
HS HIGH SPAN
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 14
SST SINGLE SLOPE
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 15
SSS SINGLE SLOPE
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 16
LT LEAN-TO
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 17
CUSTOM DESIGNS

Secondary Frame
Juhe has a generous selection of secondary structural shapes, sizes, and gauges to fit your every need. Secondary structural framing includes purlins and girts (cee and zee profiles), eave struts, base angles, clips, and other miscellaneous structural parts, which are the members that support the wall and roof panels.
Secondary Framing Systems
(Roof Secondary Structural)
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 18
Zee Purlin
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 19
Eave Strut
(Wall Structural)
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 20
Cee Purlin
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 21
Z Girt

Wall Secondary Structural
Girt conditions refer to the method in which horizontal girts are attached to the exterior columns of your building. The decision on which structural members to use will be based on the economy of each member, the wall system used, product application, or by customer choice.
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 22
Flush Girt
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 23
Inset Girt
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 24
Bypass Girt

Bracing Methods
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 25
Cable X Bracing
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 26
Wind Column
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 27
Portal Frame
Introduction to I-beam
I-Beams, also known as H-Beams have and I or H cross-section. The horizontal elements of the “I” are flanges while the vertical element is the “web”. I-Beams are commonly made of structural steel but can be formed out of aluminum. I-beams are most widely used in construction and can have an application for use in both beams as well as columns. Juhe offers many different sizes, lengths, and specifications for I-beams.
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 28
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 29
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 30
Specification
Items
Specification
Main Steel Frame
Column
Q235, Q355 Welded H Section Steel
Beam
Q235, Q355 Welded H Section Steel
Secondary Frame
Purlin
Q235 C and Z purlin
Knee brace
Q235 Angle Steel
Tie Rod
Q235 Circular Steel Pipe
Brace
Q235 Round Bar
Vertical and Horizontal Support
Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance system
Roof Panel
EPS Sandwich Panel / Glass Fiber Sandwich Panel /
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
Wall Panel
Sandwich Panel / Corrugated Steel Sheet
Accessories
Window
Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window
Door
Sliding Sandwich Panel Door / Rolling Metal Door
Rainspout
PVC
Live load on Roof
In 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade
12 Grades
Earthquake-resistance
8 Grades
Structure Usage
Up to 50 years
Finishing Options
Vast array of colors and textures available
Paint Options
Alkyd paiting, two primary painting, two finish painting
(Primer 、Medium paint 、top coat, epoxy zinc etc.) Or Galvanized.
I-beam steel production process
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 31
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 32
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 33
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 34
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 35
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 36
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 37
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 38
Contact Us
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 39
Shandong Juhe Steel Co. LTD
Established in 2016,Shandong Juhe Steel Structure Co, Ltd is dedicated to designing and manufacturing steel structure buildings(warehouse,garage,hangar,Livestock,workshop)and prefab house. After entering the international market for more than ten years, our products have been sold to North America, Asia, Africa, Europe, South America, Oceania.and sales amount continues to increase. Up to this year, the sales amount has reached to 2 billion with annual export volume of more than 20,000 tons steel and 50,000 square meters prefab house.With good products and services, we have been unanimously recognized by customers so to grab a larger market share. At present, our production workshop covers an area of more than 40,000 square meters, with 8 designers, 16 technicians, more than 150 senior production technicians. Our company will provide regular training for them.And we also have a very strict seven systems, which are mainly divided into supply system, production management system, quality control system, packaging system, storage system, prefactory inspection system, and after-sales system. The improvement of the system is to ensure our production capacity and production the high quality and after-sales service are completed to better serve customers.
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 40
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 41
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 42
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 43
Roofing Sandwich Panel Steel Build Warehouse for Steel Structural Fabrication Construction 44

Steel Structure fixed packing, loading, transportation, unloading the matters needing attention:

(1) The lifting large there must be a person responsible for the use of fixture, suitable, strictly abide by the
rules of lifting, to prevent the occurrence of vibration, impact, deformation or damage, fall in the hoisting process.

(2) At the time of loading, there must be a special supervision, check car number and packing, the car pile
up securely, and to increase the necessary binding component loosening, prevent the loss.

(3) Remained stable in the transport process, the vehicle at the time of shipment, on the long, wide, high object transport, must
be trained pilots, escort personnel responsible for, and mark is arranged on a vehicle.

(4) No rough handling, loading and unloading personnel handling, weight, size should be familiar with the components, and check the horse sling, rigging, prevent accidents.

(5) The member to the construction site, timely organization of unloading, stacking area.

(6) The crawler crane carrying member, should pay attention to the surrounding terrain, air condition, prevent the crawler crane overturning and component collision.
FAQ

Reinforced Wide Span Prefabricated Hall Design Constructional Economical Steel Build Warehouse

Q1: How long does it take to get my building?
A: Lead time is vary, but typically 2 weeks of drawings and 6-8 weeks for delivery(depending on complexity)

Q2: What are the benefits of steel construction?
A: 1-Durable and with long lifespan.
2-Short construction period than concrete and wooden building.
3-Low cost and reusable.
4-High strength and light weight, has good seismic performance.
5-Widely used for multi-purpose buildings.

Q3: Why choose JU HE?
A: At JU HE, the customer is the first priority. We don't pull any gimmicks. We are veteran owned and
operated business, unmatched in customer service. We have more than 10 years of metal building experience. We are also very reputable manufacture and can answer your questions regarding any tape of construction project.We care about your needs and value your business.

Q4: How can l get the quotation of the project?
A: lf you have the drawing, we can offer you our quotation accordingly. lf youhave no design, our engineer will design for you to confirm. And then offer you a quotation.

Q5: Do you offer designing service for us?
A: Yes, we can provide full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (X steel) and etc. We can design complex industrial building like office building,
supermarket, auto dealer shop, shipping mall, hotel etc.

Q6: Do you provide samples?
A: Yes, we could offer the sample for free but do not pay for the cost of transportation.

Q7: What is your terms of payment ?
A: L/C, T/T, and Western Union.

Q8: How about your quality control?
A: We have our own professional quality control team with rich experience and advanced inspection equipment. Also we are willing to accept any other the third inspection part to control.

Q9: Can you provide the installation help?
A: We will provide detailed instruction photos and videos to you. If it is necessary,we will send professional engineers to do the construction guidance, and some skilled workers to help for installation. However, the visa fee, air tickets,accommodation, wages will be provided by buyers.
