Home /Products/Steel Structure Livestock Shed/Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn

Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn

100 square meters
MOQ
$25.00/square meters 100-1999 square meters
Price
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn
Features Gallery Product Description Request A Quote
Features
Specifications
Standard: ASTM
Grade: Steel
Type: Heavy
Application: Steel Farming
Tolerance: ±1%
Processing Service: Bending, Welding, Cutting
Delivery Time: 15-21 Days
Window: Aluminum Alloy Window
Material: Q345,Q235 Low Carbon Steel
Steel Beams: H Beams
Purlin: C.Z Shape Steel Channel
Surface Treatment: Hot Dip Galvanised/paint Spraying
Roofing&wall: Sandwich Panel/Single Steel Sheet
Certificate: ISO9001:2008/CE/BV
Drawing Design: AutoCAD,PKPM,MTS,3D3S
Color: Custom Colors
Door: Sliding Door Roller Door
Highlight:

aluminum alloy window steel structure warehouse

,

aluminum alloy window steel structure livestock shed

,

roller door steel structure warehouse
Basic Infomation
Place of Origin: Shandong, China
Brand Name: Juhe
Model Number: q235
Payment & Shipping Terms
Packaging Details: steel structure warehouse/steel workshop/metal hanger shed: <br>1. Steel components are packaged with iron pallets at the factory with the coding number, which is convenient for customers to unload; small steel structures are bundled with iron wires and hu
Supply Ability: 20000 Ton/Tons per Month
Product Description

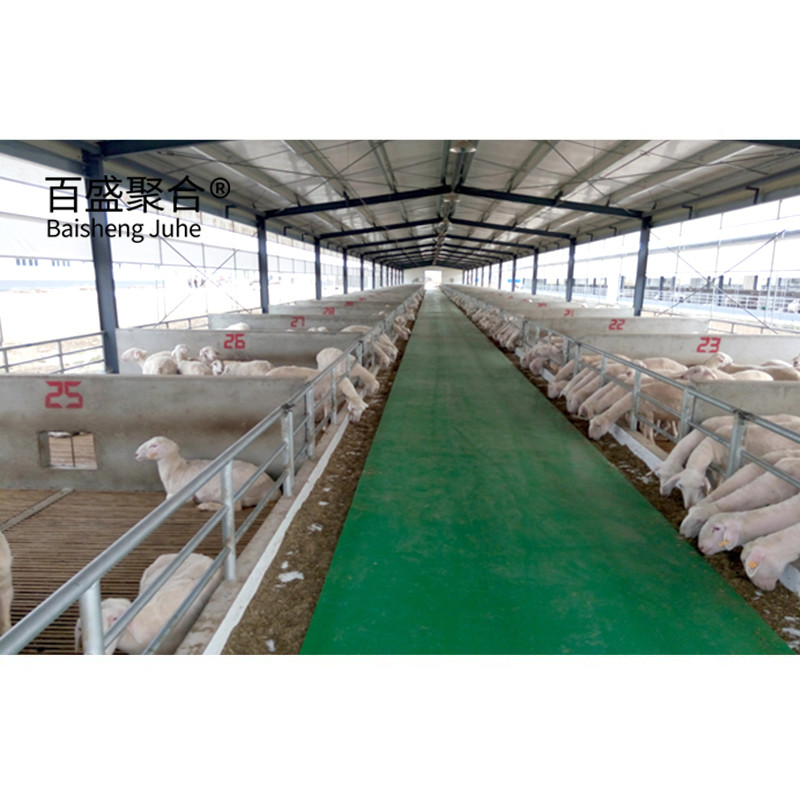

Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 0
Team Design

Sheep house construction

JUHE offers a global "turnkey" solution, where designing, building and installing undergoes precise operation. Where all the parties involved work in constant collaboration the livestock farm can exceed expectations. We are always available to adapt to the particular conditions each project, animal and farmer requires.

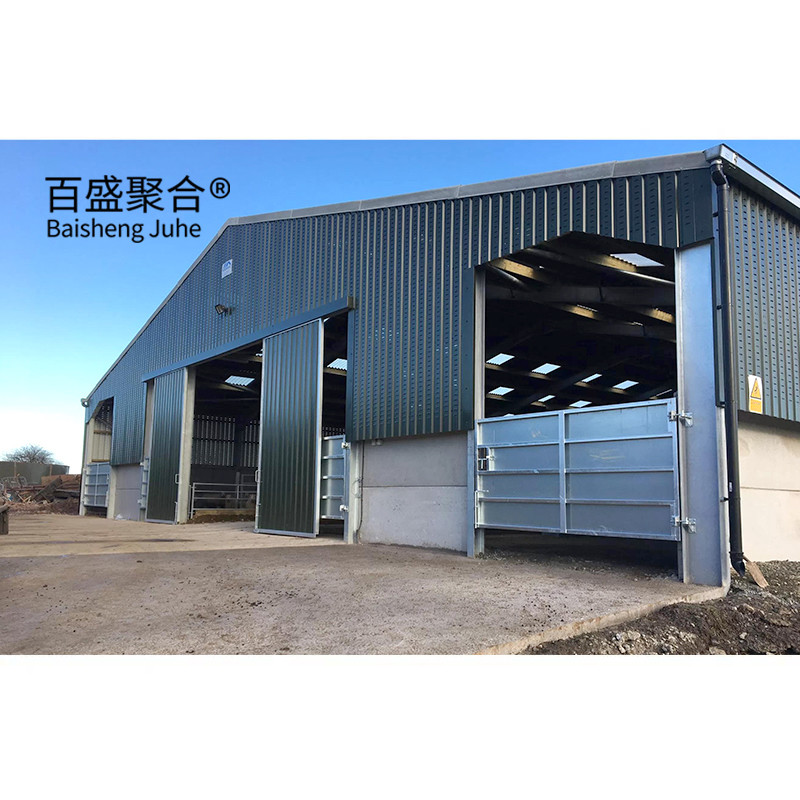

Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 1

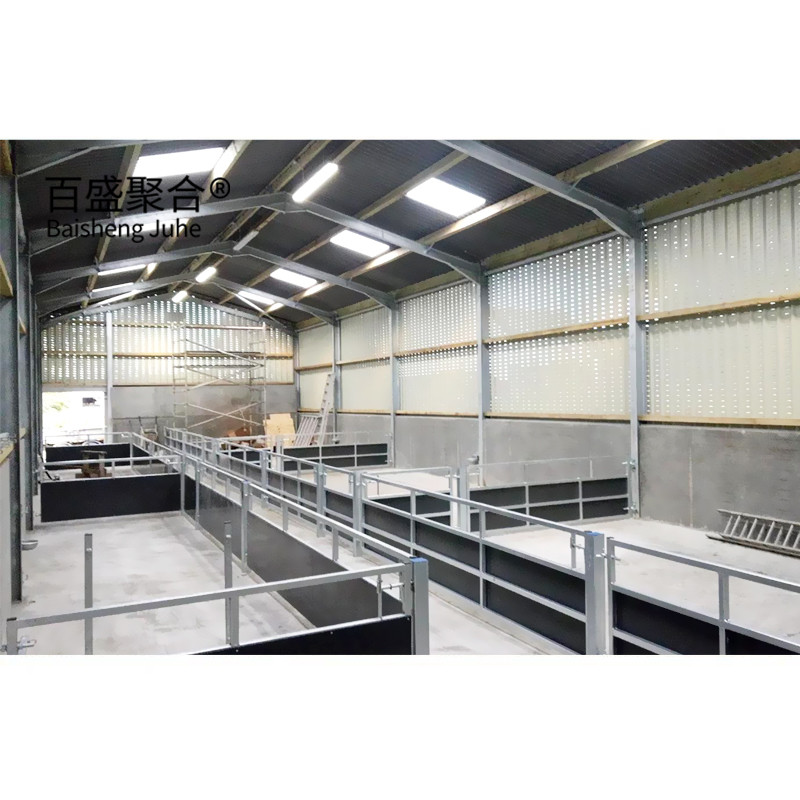

Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 2

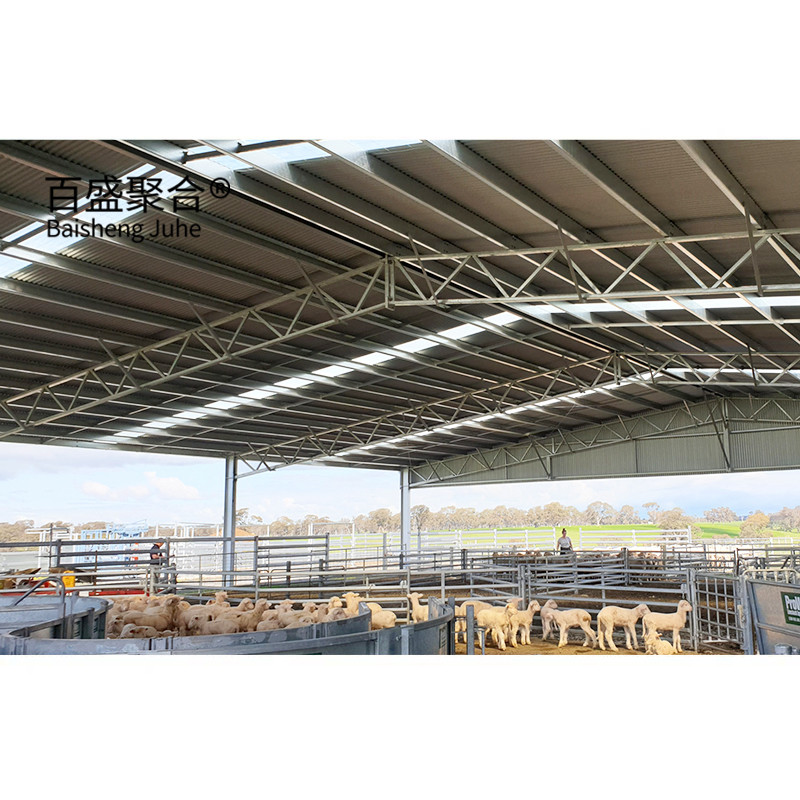

Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 3
Main Structure
No
Category
Description
1
Main structure
Steel (Q345B)
2
Second steel structure
Steel (Q235,painted or galvanized)
Maintenance
No
Category
Description

3

Roof
0.5mm/150 Fiber Glass / 0.5mm sandwich panel
840 type steel tile, thickness 0.5mm

4

Wall
0.5mm/150 Fiber Glass / 0.5mm sandwich panel
840 type steel tile, thickness 0.5mm
5
Windows
Plastic steel window / Aluminium alloy window
6
Doors
EPS composite board sliding door / Roller door
Fittings
No
Category
Description
7
Edge cover
Steel sheet , thickness 0.5mm

8

Bolt
M24 embedded bolt
Intensive bolt
Galvanized ordinary bolt
9
Daylighting band
1.2mm glass reinforced plastic
Manufacturing Construction

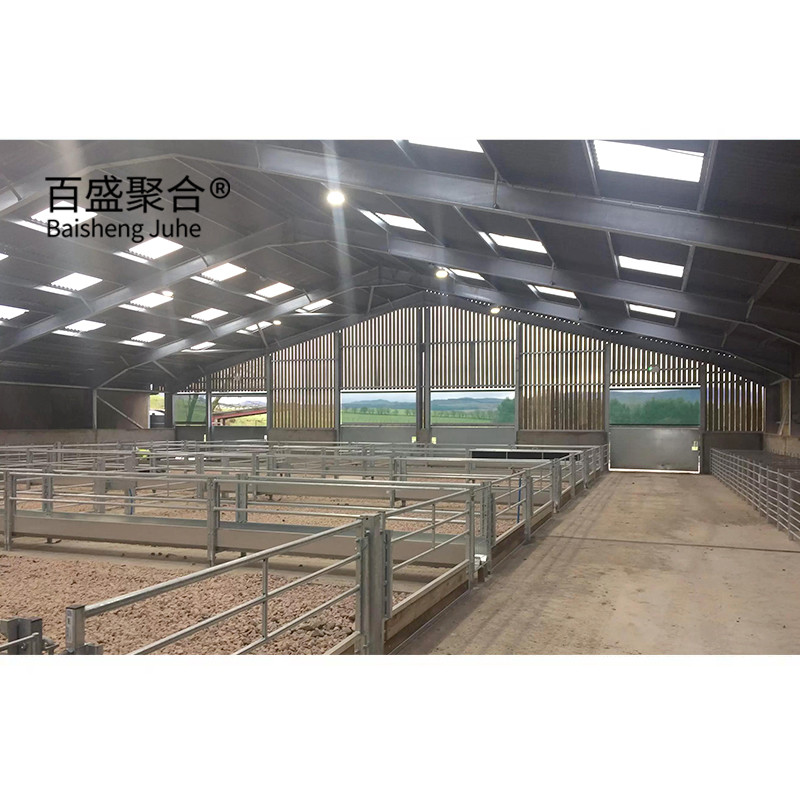

Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 4

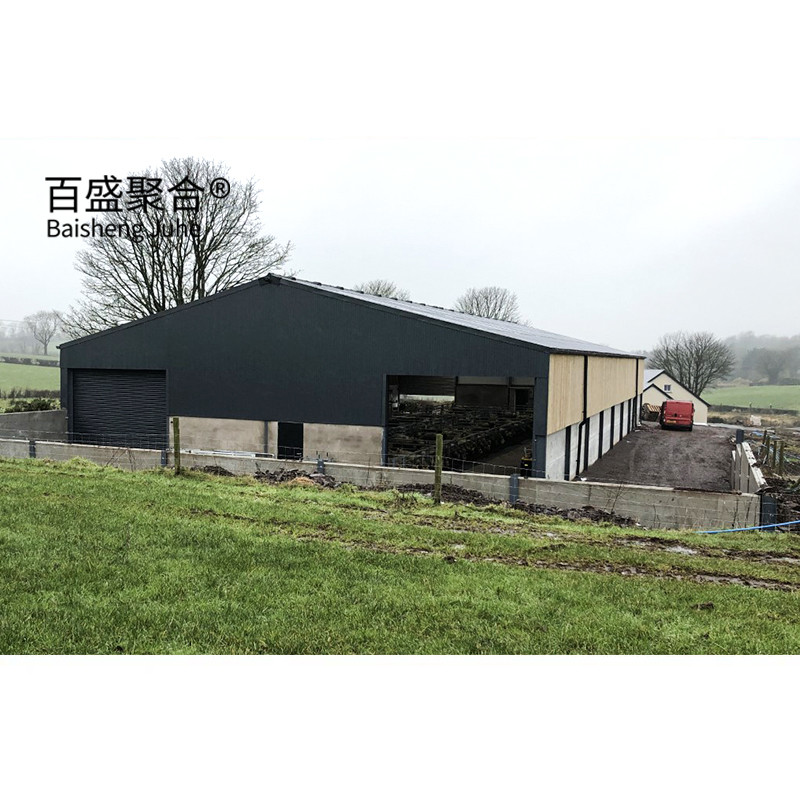

Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 5
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 6

Baishengjuhe been appointed by Harry to design and construct a new, state of the art sheep house and handling facility at the Farm Centre, in Uruguay.

Steel structure goat sheep farm design should fall in the high and dry, good drainage, sunny place. Sheep pen on the ground more than 20 centimeters of above ground. The total demand is strong, warm and well ventilated. The area according to the feeding size of the barn, general each sheep to guarantee 1. 0 to 2. 0 square meters. Each sheep house can't ring a lot of sheep, or a bad management, and increases the chances of infection. Feeding sheep, for the convenience of management, should establish the breeder channel, channel on both sides of the separated by reinforcing bar or wood pole, sheep eating and drinking water, from the rail head eating or drinking water.
Installation and Debugging
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 7

WAILTHROUGH FEEDERS

At lambing time, to using the eight pens and splits up ewes based on how many lambs they are carrying. To ensure he had plenty of feed space, particularly concentrate feeding space, incorporated walkthrough feeders in between the pens.
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 8

FENCE AND RESTRAINT BARRIER

The bottom half of the walkthrough feed barriers are covered in mesh, which is extremely useful at lambing time to stop lambs from going from one pen to another and getting mixed up.At the front of each pen, facing the feeding passageway, is a small gate that allows access into each of the eight large group pens.
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 9

SMALL DRINKING FOUTAIN

There are small exit gates in each of the pens leading out to the feed passageway, which makes it handy to move ewes out to the individual pens come lambing time or just to go in and walk through the ewes.Small drinkers – one in each pen – were installed and a drinking system for the individual pens was just nearing completion.
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 10

STEPPER SHEEP SLATS

In the middle two slatted tanks, which have a spine-wall, and the remaining tank, plastic slats specially designed for sheep were used.The plastic slats would be a better option for the ewes when they are lambing. They would be a lot warmer than on ordinary concrete ones.The plastic slats have notches in them, so there is plenty of grip on them.
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 11

LAMB ADOPTION GATE

This adoption gate clicks into existing lambing pen, this eliminating the backache and stress of moving the Ewe to a separate pen. You can convert a lambing pen into an adoption pen in a matter of seconds, this allows you to utilise space better and saves time. This adoption gate is lightweight so it can be easily moved between pens. Every sheep farm should have one of these!
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 12

SHEEP HEAD LOCK

More peace for the animals, by very quiet rung stops. Can be used for young sheep and goats over 12 months,Modular design for every stand width, Legal regulations safely and easily complied with, Fixation possibility against rank fights when eating. Proven locking system, easy group and single outlet
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 13

SHEEP BRUSH

Movable brush body is interesting for animals，Firm and stable, Good reach of the entire goat ，Robust quality and hot-dip galvanized，Two brushes provide maximum massage effect，Easy starting by turning the brush，Scratchy pleasure for as long as the animal is under the brushes.
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 14

AUTOMATIC FEEDING

Automatic feeding has been tried and tested and makes your everyday life easier. You will noticeably have more time! Multiple, automatic feed template, needs-based quantity, less loss of feed.
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 15

MILKING PARLOUR

Milking parlour for sheep and goats with 2 x 24 stands at one milking device, front pressure, dosing of core during milking.
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 16

STRAW BEDDING SYSTEM

Is the automatic bedding system for species-appropriate goat and sheep husbandry. Straw bales are dissolved and crushed, in appropriate quantities. Safety technology ensures fire prevention. The straw quality is improved. Sprinkle clean - almost dust-free!
Technical Training
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 17

Equipment management application training

Ensure that employees master the knowledge of equipment management, ensure that equipment operates with high efficiency, long cycle, safety and economy.
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 18

Breeding management process training

Let employees master pig feeding, management, disease prevention and safety knowledge, etc., so that staff can lay the foundation for future work.
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 19

Equipment operation application training

Enable equipment operators to have a comprehensive understanding of the equipment, enhance their skills in maintaining and using the equipment, be fully competent in the work they undertake.
Delivery at Production Capacity
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 20
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 21
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 22
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 23
Operation and Maintenance
production process
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 24
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 25
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 26
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 27
Company Profile
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 28
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 29

Shandong Juhe Steel Co., Ltd. as one of the animal husbandry equipment company, which is concentrated on R&D, production, sales, installation, maintenance and other services. Its main products include pig stall system, feeding system, environmental control system, poultry equipment and other animal husbandry tools. The leader of our company has more than 10 years of rich experience in the breeding equipment industry, and established our own brand "BaiShengJuHe", aiming to provide professional and cost-effective one-stop service for modern farming.
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 30
Partner
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 31
Packing and shipping
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 32
Aluminum Alloy Window Prefab Steel Construction Agricultural Building for Cattle Barn 33
FAQ
Q1: Are you a factory? A: Yes,we are professional livestock equiptment manufacture in China, since 2006. Q2.Can you print our logo or brand? A: Yes, We are welcome to cooperate with customized service Q3.What is your delivery time? A: It denpend. Usually 100-500pcs in stock; If over 1000pcs, the delivery could be 15 days; Q4: After set order, what service could you have? A: 1. One-stop visual production. The photos and videos will be provided to you on a regular basis; 2. Inspection report for each batch of order; 3. After-sales installation guide; 4. Long After-sale service, 5 years. 5. Promplty reply. Q5: How do you control the quality? A: Our factory has get the ISO9001 quality certification. Our quality control department will do the inspect for each bath of order. All process strictly produce according to the quality control system. Q6: Why choose us? A: 1. More than 15 years experience in doing sheep farm equipment; 2. Factory direct sale, Strict quality control and competitive price; 3. Strong after sell serivce, Video, photo and online live show the produce steps. Installation technical guidance.
