Name: Galvanized Fast Install Light Prefabricated Villa Container House for Popular Living
Brand: Juhe
SKU: Juhe
Price: 30.00 USD
Availability: InStock
Rating: 4.7 (125 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Standard: AiSi

Grade: Steel

Type: Light

Application: Frame Part

Tolerance: ±1%

Processing Service: Bending, Welding

Delivery Time: 15-21 Days

Size: Customzation Size

Product Name: Steel Structure Building

Purlin: C.Z Shape Steel Channel

Material: Q235B/Q345B Low Carbon Steel

Application Fields: Workshop Plant

Door: Rolling Door

Keyword: Steel Metal Frame Structure

Color: Customized Color

Surface Treatment: 1. Painting 2. Galvanized

Main Frame: Light Steel Q345 Q235

Port: Qingdao Tianjin

Highlight:

aisi steel structure

aisi steel truss frame

c.z shape steel channel steel structure

Basic Infomation

Place of Origin: Shandong, China

Brand Name: Juhe

Payment & Shipping Terms

Packaging Details: standard export package to protect the goods or customer's requirement

Supply Ability: 20000 Ton/Tons per Month

Gallery

Galvanized Fast Install Light Prefabricated Villa Container House for Popular Living

Product Description

Products Description

Fast Install Light Prefabricated Villa Container House Popular Living House Steel Structure

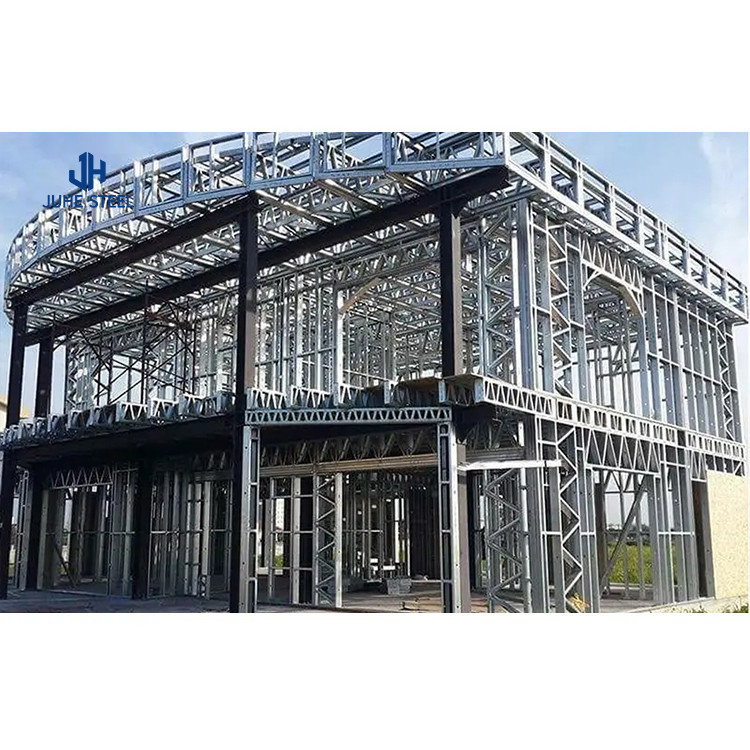

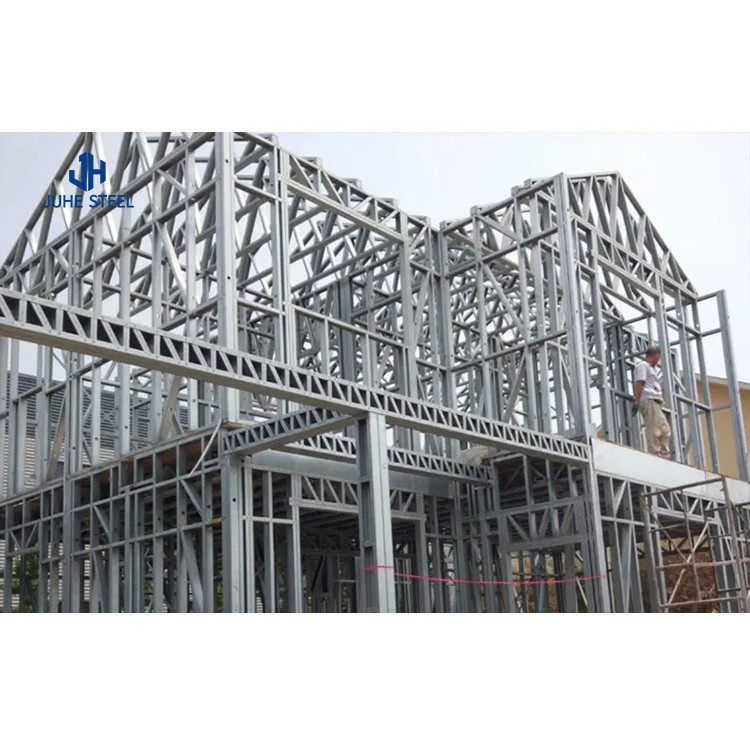

The light steel villa utilize the 100% cold-bend thin wall steel as the structure body and can be used to build buildings within 6 floors. The main building component of this system is the frame bridge,which is composed by the galvanized cold-bending high frequency welded light thin wall rectangular pipe and the triangle.C type, triangle v type connection. All these prefabricated components are transferred to the construction site to be installed into the structure body. After that the interior, exterior wall panels and roof profile panels are laid out, while the heat and sound insulation material are filled into the space in the wall and floor deck. This product solve the problem of "hot bridge,bad fire resistance". Advantages 1. Industrialized production with fast manufacturing speed and high precision; 2. Good looking,stable structure,good anti-shock and anti-corrosion property; 3. Cold-rolled thin wall light steel structure system building has lighter weight,shallow base,low pricing; 4. No need for large scale machines on the construction site. Fast installation. The construction of a 200m2 two-story villa can be completed by 6-8 skilled workers in about 20 days; 5. Convenient package and transportation:the transportation process is fully considered into the product design,optimize the load method, with about 130-150 m2 per 40 foot container； 6. The wall and roof panel is enclosed by multi-type material,which makes the walls of the building breathable and enhance a more comfortable residence in it.

7. The construction site is no wet, environment friendly, not seasonally restraint;

8. With the satisfaction of the functional needs,the wall is thinner,which increase the effective usage area of the building;

9. Customizable.

No.	Item	Specification
Steel Structure Parts
1	Roof truss	Galvanized steel square tube, material: Q235.
2	Steel column	Galvanized steel square tube, material: Q235.
3	Steel foundation	Galvanized U section steel.
Main Part of the House
1	Roof	EPS cement/EPS/Mineral wool/Glass wool/PU sandwich panels
2	Wall	EPS cement/EPS/Mineral wool/Glass wool/PU sandwich panels
3	Floor	Ceramic floor or wooden floor, thickness:15-18mm
Accessory Parts
1	Windows	PVC/aluminum/wooden windows
2	Doors	Exterior door: steel security door+Inner door: aluminum/wooden door
3	Inner wall	Wall paper (in choice)
4	Electrical accessories	Ceiling lights, electric wire and sockets for different countires
5	Kitchen fittings	Kitchen cabinet with stainless sink
6	Toilet	Toilet, washing basin and shower head
7	Drainage system	PVC gutter and PVC downspout
Technical Parameters
1	Wind load	0.5KN/㎡, can be adjusted according to climate
2	Snow load	0.5KN/㎡, can be adjusted according to climate
3	Earthquake resistance	Up to 9 degree
4	Life span	Over 35 years lifespan.

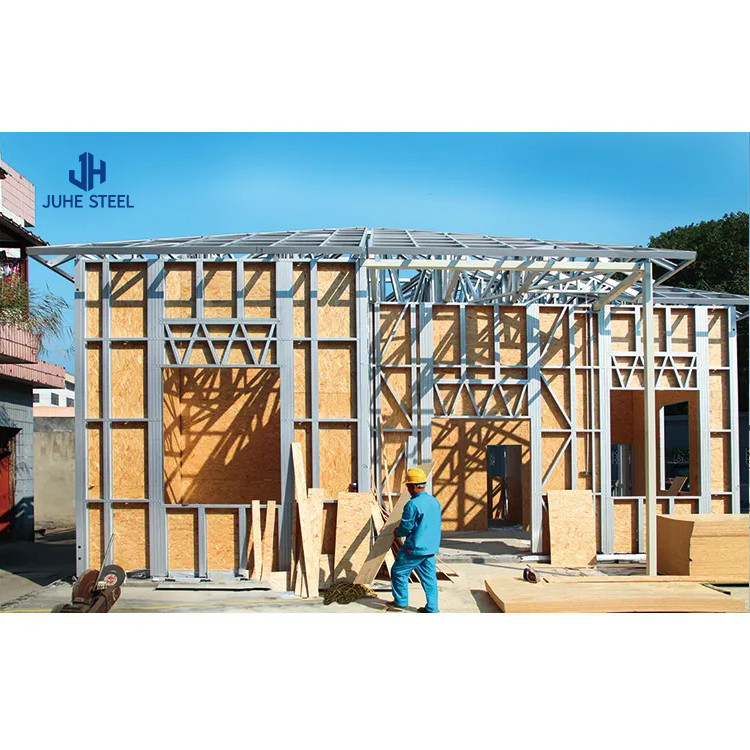

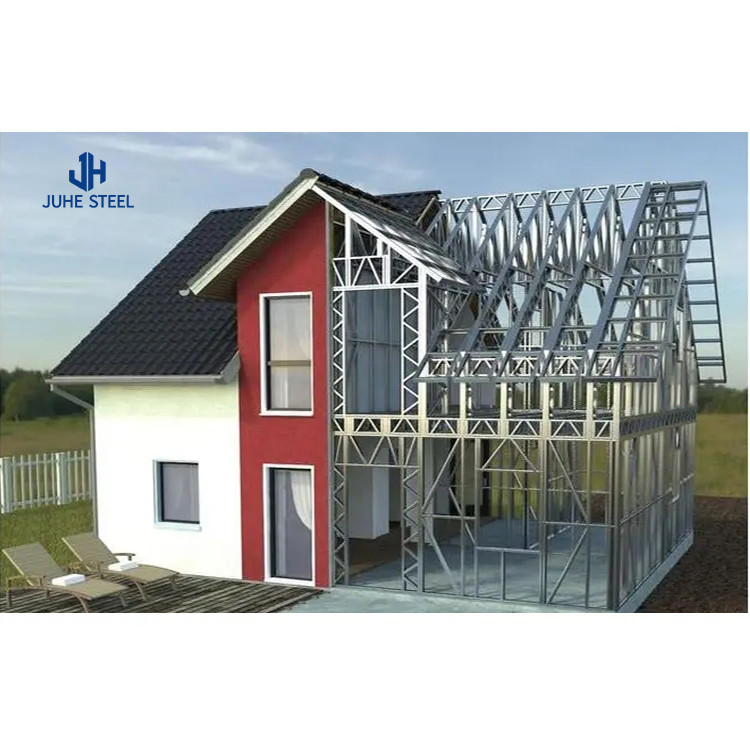

The light steel villa adopts the 0.8-1.5mm thickness galvanized C/U type steel (Q550DTz) as frame and install with composite wall and roof (OSB Panel/ Glass wool for heat and sound insulation/ Decorative panels for inside and outside). It's a kind of fabricated type wall bearing system, has the characteristic of light weight, large span, anti-seismic, hurricaneproof, thermal insulation, sound insulation and so on. And due to the industrial production of precast, components of composite wall panels, floor, and roof, during the installation it don't need welding, coating so quick installation can be achived. * We have over 15+ years in the construction of building materials, pre-engineered steel buildings.

* Offer a much cheaper price with advice to help you control and balance the budget with the design of the building, construction materials, minimizing the cost of delivery.

* Professional because of many experiences in designing steel buildings - manufacturing many construction works. Container house is a constructionproduct which is mobile,prefabricated and reusable.The house adopts standardized design,factory production,and takes cabinet as the elemental unit.Container house is not only fit for individual usage,but also for spacious room application formed by various horizontal and vertical direction combination.Container house structure uses standardized structural elements that are weled by profile steel or cold-formed thin-wall steel.Combined container houses is connected and fastened by high strength screws,so that house structure is simple,easy to install.Container house is widely used for real estate development exhibition hall,product sale showroom,temporary reception center,commercial temporary office,and store and so on.

Details Images

Features:

Low cost Australia prefab light steel structure villa evolves from North American style wooden structure construction, after more than one hundred years of development, has formed a superior physical properties, space and shape to a flexible, easy construction, various forms of mature construction system.

Advantages:

1.Easy to install, save time and money. 2.Supply different country standard for door, window, electrical and sanitary etc. 3.Supply engineer and labours if needed.

Why Choose Us to offer steel structure workshop building:

1.We have a group of professional engineers, most of whom has more than 10 years experiences in architecture field. our company has got a various of experiences in design, manufacture, installation and so on. The work staff have excellent skills. Some of them had helped customers to install the warehouse around the world. 2. We will offer one stop service. construction drawing,calculation sheet will be offered to help you get construction permit. Foundation design could be free made if you need. We could make 3D drawings to show the view. What's more, Installation drawings will be offered and Steel structure column,beams will be marked number on it to help you install. 3. We will send you extra bolts,purlins,panels incase any damage when install.

4. Efficiency is our pursuit. Every inquiry ,emails will be replied immediately. Every questions will be paid high attention. 5. We also have possessed more than 40 sets of large precise and domestically advanced processing equipments, including large gantry planing machines, automatic submerged arc welding machines, assembling machines, slitters, shot blasting machines and soon. 6.We will offer details packing list for every container when load so it will be easier to unload. 7. "Moral personality decides product quality." is our guarantee to the products. "Customers come first." is our everlasting pursuit. Believe your choose, we'll give you a satisfied answer.

Materials of the wall system 16mm metal external wall cladding Its surface is made of 0.42mm colored steel pressed with embossed
pattern;bottom is pasted with dampproof aluminium foil;integrated with PU between the surface and bottom. size: 16mm 12mm metal
external wall claddingIts surface is made of 0.42mm colored steel pressed with embossed pattern;bottom is pasted with dampproof
aluminium foil;integrated with PU between the surface and bottom. size: 12mmMatal Carved boardIts surface is made of 0.42mm
colored steel pressed with embossed pattern;bottom is pasted with dampproof aluminium foil; integrated with PU between the surface
and bottom. size: 16mm. effective width 375mm and 385mm

PVC metal external wall cladding(Holland style)

Size: width:20.32-25.4cm thickness: 0.8mm-1.0mm Normal length: 3.81m weigth:2.2(±0.1kg)/m²
Cement fiber external wall cladding(solid)

Size: effective width: 460mm effective thickness: 16mm18mm
Rippled plate
Size: effective width:825mm
Metal external wall cladding pendant Aluminium alloy belt course

Insulation material

Glass insulation cotton Used in the wall system and roof system as insulation material.
XPS
Used in the wall system and roof system asinsulation material.
Building paper
Isolate the mositure; mainly used in the wall system and theconnection of wall keel and cement floor.
House wrap
It is used to let the inside mositure out and protect the inner space fromthe humidity outside.Used in the wall system

Downspout

•PVC gutter
•Steel gutter
Boards
•Gypsum board
Size: 2.4m*3m; 9.5mm/12mm15mm Used in the inner wall, floor.
•Cement fiber board
Size: 2.4m*3m; thickness: 9.5mm/12mm/15mm
•Wood floor

Steel Structure

Shandong Juhe Steel Co. LTD

_{Was founded in 2013. After more than 10 years of steady development, It has now become a high-tech, diversified, export-oriented international private enterprise integrating research and development, design, production, installation and construction and service. manufacture enterprises in China, also has waterproof anti-corrosion insulation engineering, construction curtain wall engineering, building engineering construction general contracting qualification, be included in the construction industry modernization production base in Shandong province. The core competitiveness of the company comes from the unremitting pursuit of technological breakthroughs. Now, there are more than 100 senior technical personnel of various kinds, and many universities and scientific research institutions to establish cooperative relations. With the help of internal and external intellectual resources, relying on steel structure, we continue to innovate in various aspects and achieve new breakthroughs.}

Construction process

Customer Album

Steel Structure fixed packing, loading, transportation, unloading the matters needing attention:

(1) The lifting large there must be a person responsible for the use of fixture, suitable, strictly abide by the
rules of lifting, to prevent the occurrence of vibration, impact, deformation or damage, fall in the hoisting process.

(2) At the time of loading, there must be a special supervision, check car number and packing, the car pile
up securely, and to increase the necessary binding component loosening, prevent the loss.

(3) Remained stable in the transport process, the vehicle at the time of shipment, on the long, wide, high object transport, must be trained pilots, escort personnel responsible for, and mark is arranged on a vehicle.

(4) No rough handling, loading and unloading personnel handling, weight, size should be familiar with the components, and check the horse sling, rigging, prevent accidents.

(5) The member to the construction site, timely organization of unloading, stacking area.

(6) The crawler crane carrying member, should pay attention to the surrounding terrain, air condition, prevent the crawler crane overturning and component collision.

FAQ

Fast Install Light Prefabricated Villa Container House Popular Living House Steel Structure

Q1: Why choose JUHE ? A: At JUHE, the customer is the first priority. We don't pull any gimmicks. We are veteran owned and operated business, unmatched in customer service. We have more than 10 years of light steel villa experience. We are also very reputable manufacturer and can answer your questions regarding any tape of construction project. We care about your needs and value your business. Q2: How can l get the quotation of the project ? A: lf you have drawing ,we can offer you our quotation according to your drawing . If you have no design, our engineer will design some drawings for you to confirm. And then offer you a quotation. Q3: Do you offer designing service for us? A: Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM. MTS, 3D3S, Tarch, Tekla Structures (X steel) and etc. We can design complex light steel villa and industrial building like office mansion, supermarket, auto dealer shop, shipping mall, hotel etc. Q4: Do you provide samples of materials? ls it free or extra? A: Yes, we could offer the sample for free charge but do not pay the cost of transport costs. Q5: What is your terms of payment ? A: LC、T/T、Western Union Q6: How long is your delivery time? A: Generally it is within 25-45 days ,definitely according to quantity and color. Q7: How about your quality control? A: We have our own professional quality control team with rich experience and advanced inspection equipment. Also we are willing to accept any other the third inspection part to control. Q8: Can you provide the installation help? A: We will provide detailed instruction photos and videos to you. If it is necessary, we will send professional engineers to do the construction guidance, and some skilled workers to help installation. However, the visa fee, air tickets,accommodation,wages will be provided by buyers.
