Name: Large Span Prefabricated Light Steel Structure Airplane Hangar Roof with AiSi Standard
Brand: JUHE
SKU: Q235B/Q345B
Price: 56.00 USD
Availability: InStock
Rating: 4.9 (108 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Standard: AiSi

Grade: Q235/Q345B

Type: Light, Light Steel Structure Frame

Application: Steel Workshop,Wareshouse Etc., Storage Warehouse Structure Building

Tolerance: ±1%

Processing Service: Bending, Welding, Decoiling, Cutting, Punching

Delivery Time: 8-14 Days

Product Name: Steel Structure Hangar

Application Fields: Steel Structural Fabrication Construction

Purlin: C.Z Shape Steel Channel

Main Frame: Solid H-shape Steel Beam

Keyword: Solid H-shape Steel Beam

Material: Q235B/Q345B Low Carbon Steel

Surface Treatment: Painted

Window: Aluminum Alloy Window

Highlight:

aisi steel structure

aisi steel truss frame

c.z shape steel channel steel structure

Basic Infomation

Place of Origin: Shandong, China

Brand Name: JUHE

Model Number: Q235B/Q345B

Payment & Shipping Terms

Gallery

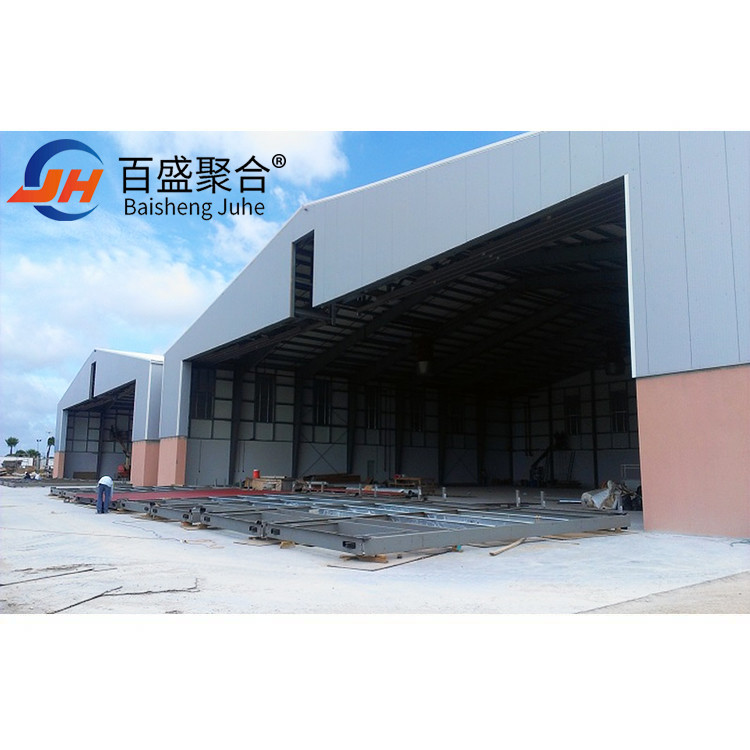

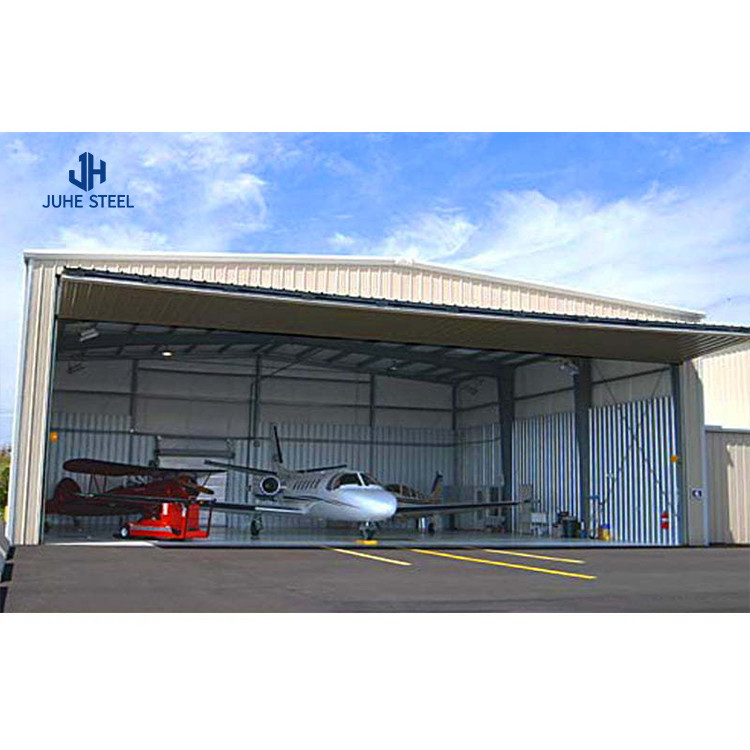

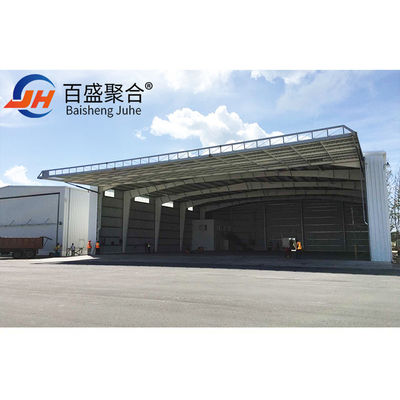

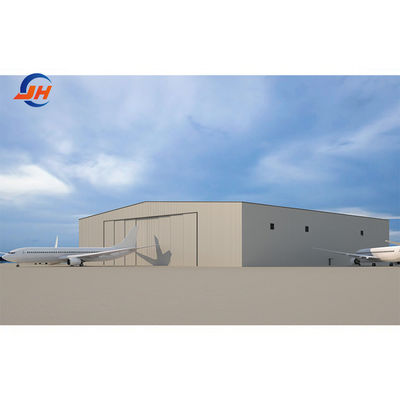

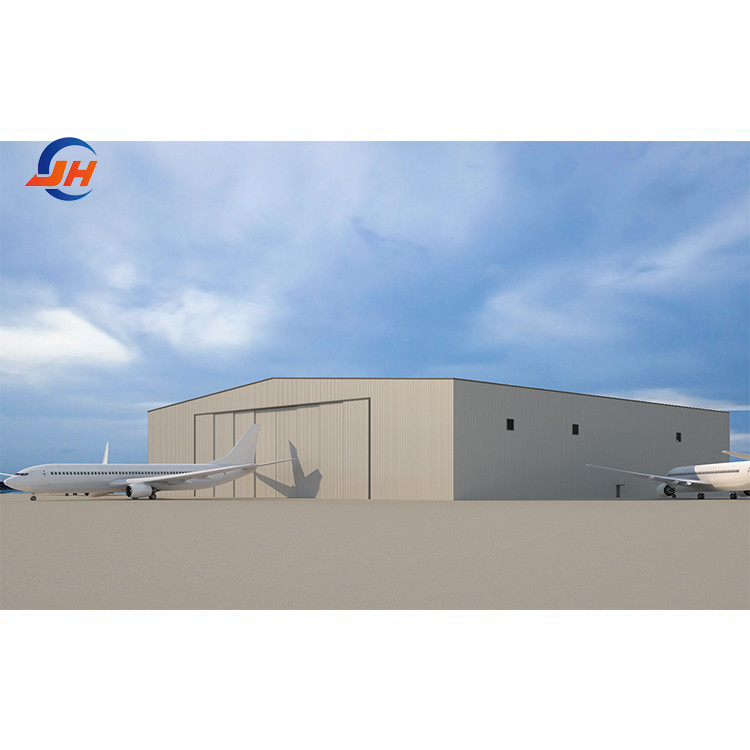

Large Span Prefabricated Light Steel Structure Airplane Hangar Roof with AiSi Standard

Product Description

Steel structure hangar has features of high fire resistance, strong corrosion resistance. Steel structure hangar is mainly refers to the main bearing component is composed of steel. Including the steel columns, steel beam, steel structure, steel roof truss.Each component using welds, bolts or rivets to connect.

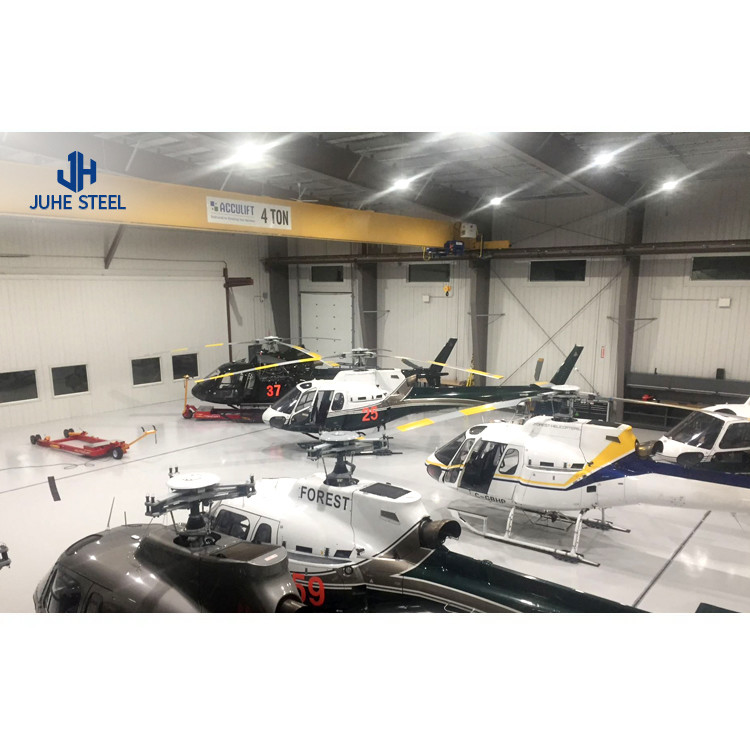

The strength of steel means that your airplane hangar can stand up against the harshest elements and the test of time. Metal aviation buildings from Juhe are resistant to water, fire and pest damage and will protect your aircraft assets from ultraviolet light. We work with you to ensure that your building is able to withstand the snow loads for your area and meet local building requirements.

Project cases

Frame System

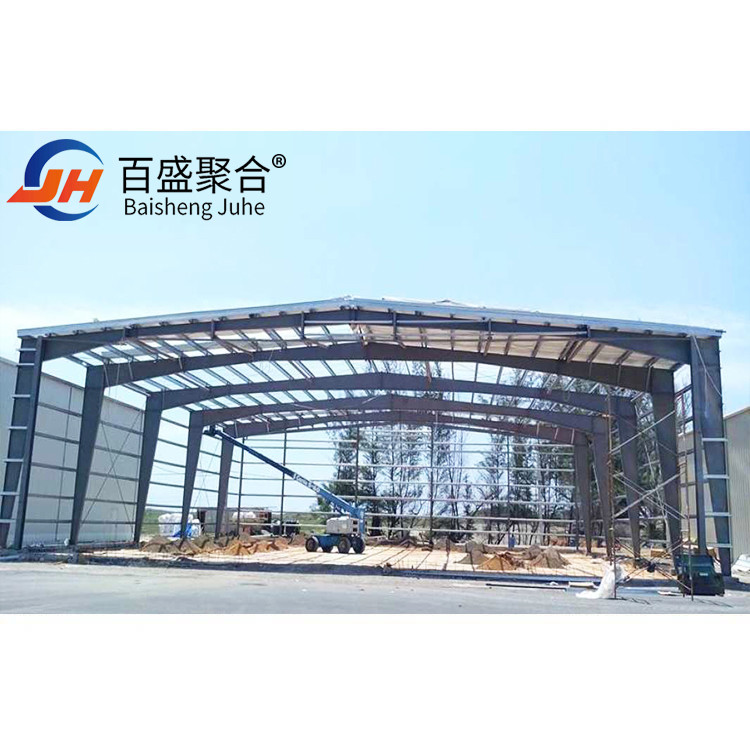

Primary Framing

Juhe offers metal building frames main categories:CS Clear Span, MS Multi Span, CL Classic, HS High Span, SST Single Slope, SSS Single Slope, LT Lean-To, Customo Designs.Our primary framing acts as a single unit after assembly that will support the load of the finished structure while transferring the weight to the foundation.

1.Solid Built-up I-beam main frame construction; 2.high strength plate steel; 3.Submerged Arc/welded Frames.

CS CLEAR SPAN

MS MULTI SPAN

CL CLASSIC

HS HIGH SPAN

SST SINGLE SLOPE

SSS SINGLE SLOPE

LT LEAN-TO

CUSTOM DESIGNS

Secondary Frame

Juhe has a generous selection of secondary structural shapes, sizes, and gauges to fit your every need. Secondary structural framing includes purlins and girts (cee and zee profiles), eave struts, base angles, clips, and other miscellaneous structural parts, which are the members that support the wall and roof panels.

Secondary Framing Systems

(Roof Secondary Structural)

Zee Purlin

Eave Strut

(Wall Structural)

Cee Purlin

Z Girt

Wall Secondary Structural

Girt conditions refer to the method in which horizontal girts are attached to the exterior columns of your building. The decision on which structural members to use will be based on the economy of each member, the wall system used, product application, or by customer choice.

Flush Girt

Inset Girt

Bypass Girt

Bracing Methods

Cable X Bracing

Wind Column

Portal Frame

Introduction to I-beam

I-Beams, also known as H-Beams have and I or H cross-section. The horizontal elements of the “I” are flanges while the vertical element is the “web”. I-Beams are commonly made of structural steel but can be formed out of aluminum. I-beams are most widely used in construction and can have an application for use in both beams as well as columns. Juhe offers many different sizes, lengths, and specifications for I-beams.

Specification
Items			Specification
Main Steel Frame	Column	Q235, Q355 Welded H Section Steel
Main Steel Frame		Beam	Q235, Q355 Welded H Section Steel
Secondary Frame	Purlin	Q235 C and Z purlin
		Knee brace	Q235 Angle Steel
		Tie Rod	Q235 Circular Steel Pipe
		Brace	Q235 Round Bar
		Vertical and Horizontal Support	Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance system	Roof Panel	EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
Maintenance system		Wall Panel	Sandwich Panel / Corrugated Steel Sheet
Accessories	Window	Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window
		Door	Sliding Sandwich Panel Door / Rolling Metal Door
		Rainspout	PVC
Live load on Roof			In 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade			12 Grades
Earthquake-resistance			8 Grades
Structure Usage			Up to 50 years
Finishing Options			Vast array of colors and textures available
Paint Options			Alkyd paiting, two primary painting, two finish painting (Primer 、Medium paint 、top coat, epoxy zinc etc.) Or Galvanized.

I-beam steel production process

Shandong Juhe Steel Co. LTD

Established in 2016,Shandong Juhe Steel Structure Co, Ltd is dedicated to designing and manufacturing steel structure buildings(warehouse，garage，hangar，Livestock，workshop)and prefab house. After entering the international market for more than ten years, our products have been sold to North America, Asia, Africa, Europe, South America, Oceania.and sales amount continues to increase. Up to this year, the sales amount has reached to 2 billion with annual export volume of more than 20,000 tons steel and 50,000 square meters prefab house.With good products and services, we have been unanimously recognized by customers so to grab a larger market share. At present, our production workshop covers an area of more than 40,000 square meters, with 8 designers, 16 technicians, more than 150 senior production technicians. Our company will provide regular training for them.And we also have a very strict seven systems, which are mainly divided into supply system, production management system, quality control system, packaging system, storage system, prefactory inspection system, and after-sales system. The improvement of the system is to ensure our production capacity and production the high quality and after-sales service are completed to better serve customers.

Steel Structure fixed packing, loading, transportation, unloading the matters needing attention:

(1) The lifting large there must be a person responsible for the use of fixture, suitable, strictly abide by the
rules of lifting, to prevent the occurrence of vibration, impact, deformation or damage, fall in the hoisting process.

(2) At the time of loading, there must be a special supervision, check car number and packing, the car pile
up securely, and to increase the necessary binding component loosening, prevent the loss.

(3) Remained stable in the transport process, the vehicle at the time of shipment, on the long, wide, high object transport, must be trained pilots, escort personnel responsible for, and mark is arranged on a vehicle.

(4) No rough handling, loading and unloading personnel handling, weight, size should be familiar with the components, and check the horse sling, rigging, prevent accidents.

(5) The member to the construction site, timely organization of unloading, stacking area.

(6) The crawler crane carrying member, should pay attention to the surrounding terrain, air condition, prevent the crawler crane overturning and component collision.

FAQ

Large Span Prefabricated High Quality Light Steel Structure Airplane Hangar Shed Space Frame Aircraft Hangar Roof

Q1: How long does it take to get my building?

A: Lead time is vary, but typically 2 weeks of drawings and 6-8 weeks for delivery(depending on complexity)

Q2: What are the benefits of steel construction?

A: 1-Durable and with long lifespan.

2-Short construction period than concrete and wooden building.

3-Low cost and reusable.
4-High strength and light weight, has good seismic performance.
5-Widely used for multi-purpose buildings.

Q3: Why choose JU HE?

A: At JU HE, the customer is the first priority. We don't pull any gimmicks. We are veteran owned and
operated business, unmatched in customer service. We have more than 10 years of metal building experience. We are also very reputable manufacture and can answer your questions regarding any tape of construction project.We care about your needs and value your business.

Q4: How can l get the quotation of the project?

A: lf you have the drawing, we can offer you our quotation accordingly. lf youhave no design, our engineer will design for you to confirm. And then offer you a quotation.

Q5: Do you offer designing service for us?

A: Yes, we can provide full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (X steel) and etc. We can design complex industrial building like office building,
supermarket, auto dealer shop, shipping mall, hotel etc.

Q6: Do you provide samples?

A: Yes, we could offer the sample for free but do not pay for the cost of transportation.

Q7: What is your terms of payment ?

A: L/C, T/T, and Western Union.

Q8: How about your quality control?

A: We have our own professional quality control team with rich experience and advanced inspection equipment. Also we are willing to accept any other the third inspection part to control.

Q9: Can you provide the installation help?

A: We will provide detailed instruction photos and videos to you. If it is necessary,we will send professional engineers to do the construction guidance, and some skilled workers to help for installation. However, the visa fee, air tickets,accommodation, wages will be provided by buyers.
