Name: AutoCAD Drawing Design Steel Frame Pig Farm Structures Building for Poultry Husbandry
Brand: Juhe
SKU: q235
Price: 25.00 USD
Availability: InStock
Rating: 4.8 (194 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Standard: ASTM

Grade: Steel

Type: Heavy

Application: Steel Farming

Tolerance: ±1%

Processing Service: Bending, Welding, Cutting

Delivery Time: 15-21 Days

Window: Aluminum Alloy Window

Material: Q345,Q235 Low Carbon Steel

Steel Beams: H Beams

Purlin: C.Z Shape Steel Channel

Surface Treatment: Hot Dip Galvanised/paint Spraying

Roofing&wall: Sandwich Panel/Single Steel Sheet

Certificate: ISO9001:2008/CE/BV

Drawing Design: AutoCAD,PKPM,MTS,3D3S

Color: Custom Colors

Door: Sliding Door Roller Door

Port: Qingdao Tianjin

High Light:

pig steel structure warehouse

pig steel structure livestock shed

roller door steel structure warehouse

Basic Infomation

Place of Origin: Shandong, China

Brand Name: Juhe

Model Number: q235

Payment & Shipping Terms

Packaging Details: steel structure warehouse/steel workshop/metal hanger shed: <br>1. Steel components are packaged with iron pallets at the factory with the coding number, which is convenient for customers to unload; small steel structures are bundled with iron wires and hu

Supply Ability: 20000 Ton/Tons per Month

Gallery

AutoCAD Drawing Design Steel Frame Pig Farm Structures Building for Poultry Husbandry

Product Description

Team Design

PIG FARMS CONSTRUCTION

JUHE offers a global "turnkey" solution, where designing, building and installing undergoes precise operation. Where all the parties involved work in constant collaboration the livestock farm can exceed expectations. We are always available to adapt to the particular conditions each project, animal and farmer requires.

Product Name	Hog Sow Cage Farrowing Crates
Model No	JH4254
Material	32x2.5mm steel tube
Surface treatment	Hot Galvanized
Overall size	3.6m2.1m (LW)
Fence	PVC board 30mmx500mm or tube
Feeder	SS304 or Cast iron for sows
Floor	Cast iron for sows, plastic for piglets
Drinker	Nipple drinker for both sows and piglets
Heating	Warm house with heating floor or heating lamp(optional)
Feeding trough	Plastic/SS304 feeders for piglets
Beam	Fiberglass beam and bracket

Manufacturing Construction

Baishengjuhe been appointed by Hunland to design and construct a turn-key, state-of-the-art pig farm in Hungary.

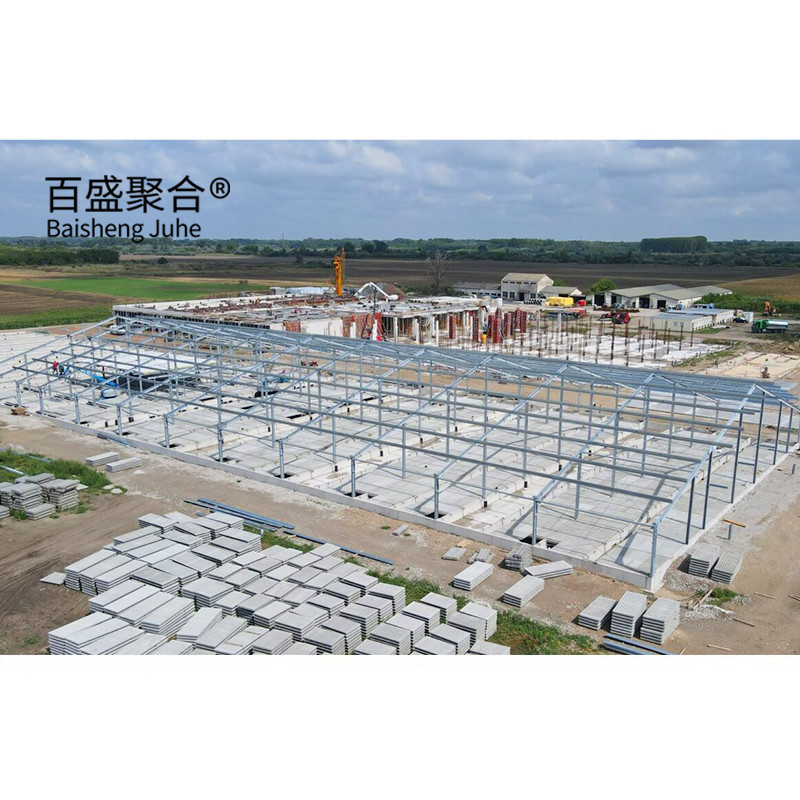

On behalf of Hunland, a global leader in livestock export/import, baishengjuhe designed and construct a new, turn-key sow farm in Hungary, The whole project can broadly be divided in four main buildings, of which two buildings accommodate the pigs. One of the two stables is a 2-story building of which the entire top floor is equipped for the housing of piglets. The ground floor of the stable is divided in departments for farrowing, gilts production and departments for mating and early gestation. The 2-story building has a useable floor surface of 18.313 sqm. The other stable that accommodates pigs is a stable for gestation and gilts production with a total usable floor surface of 7.300 sqm.

Installation and Debugging

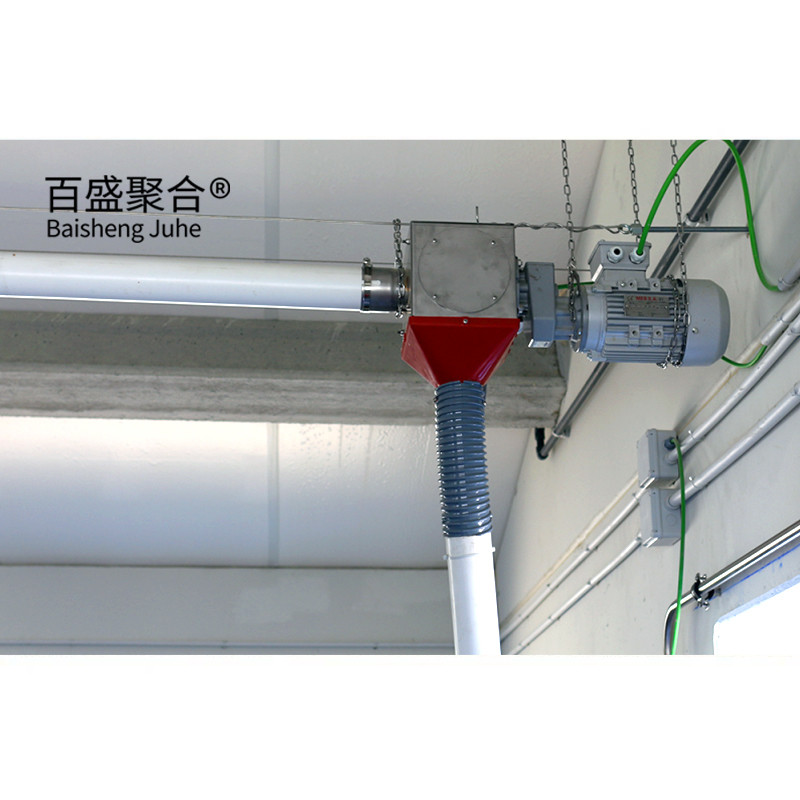

A feed tower is a storage device suitable for large and medium farms. The feeding equipment is provided at its outlet and has the function of regularly transporting feed to the piggery. Our common tower is composed of silo body, silo clamshell, ladder and column. The feed tower is not actually a cylinder, because the lower cone has a perspective hole, so you can observe the height of the feed in the bin.

FARROWING CRATE FOR SOWS

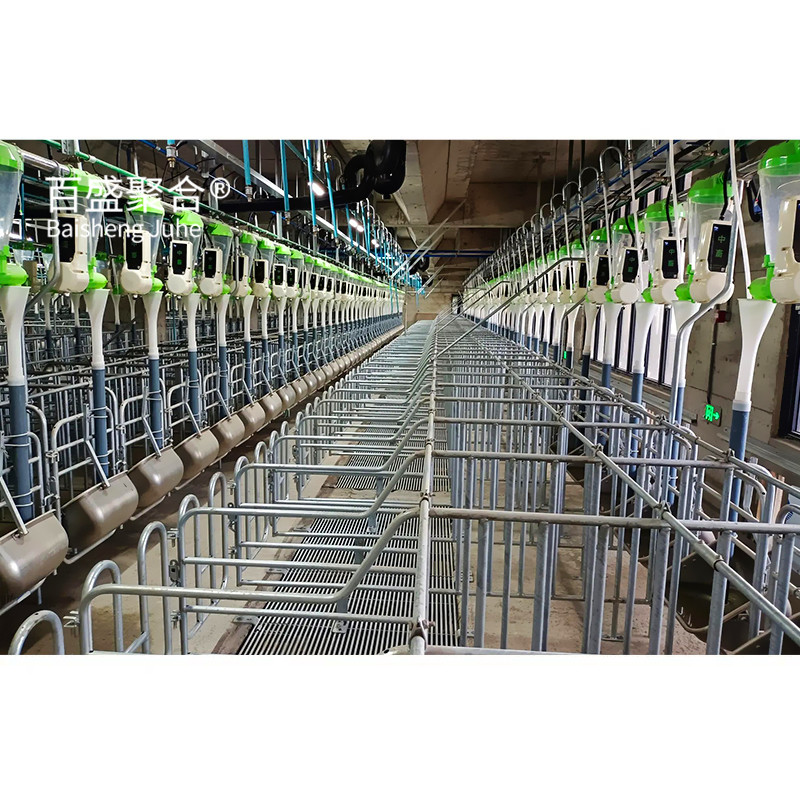

The farrowing crate accommodation is excellent for maintaining control of the body movements of the sow near her piglets. With optimum dimensions and smooth edges, the sow cannot be hurt. juhe´s farrowing crates have different accessories according to the customer's needs.

SLAT FOR SOWS

The slat designed by juhe for sows, is made of high-quality polypropylene to withstand the extreme pressure constantly applied by the sow.Its design creates excellent support for the sow when standing up and when sitting down, with no unnecessary connection gaps, which prevents the animal's hooves from damage.

VOLUMETRIC DISPENSER

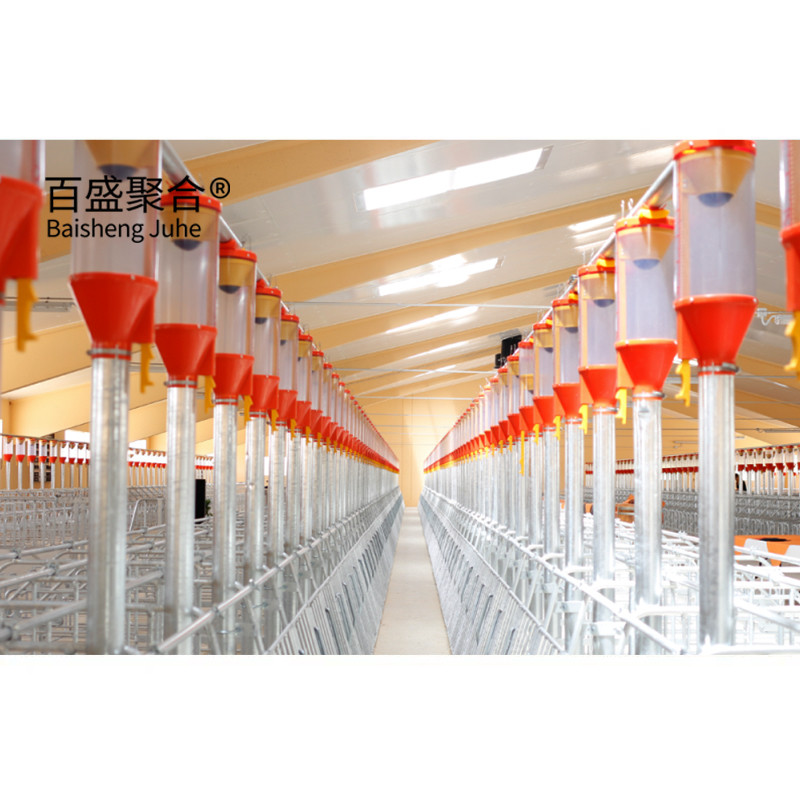

The 6 - 7 L feed dispenser is ideal for extreme climates thanks to its state-of-the-art injection. It has a bi-directional and anti-fall guidance ball to control the feed volume, in addition to a measuring slider which clearly positions the dispensed amounts. These components control and restrict the feed to make production more precise. It is generally supplied unassembled.

BUOY FEED DISPENSER

A common problem with dispensers is feed overflows when the animal insistently hits the tubing connected to the feed line. The shape and fitting of the buoy has been developed to allow the feed to move with minimum friction. Together this allows a greater number of dispensers to be automated all in the same system.

INFRARED HEATING LAMP

The infrared lamp heats the piglets directly, providing the necessary temperature conditions for optimal development. The reflector can be configured in transparent polycarbonate or aluminium with an activation switch. The lamps have a maximum power of 250w.

Cooling modules in stainless steel

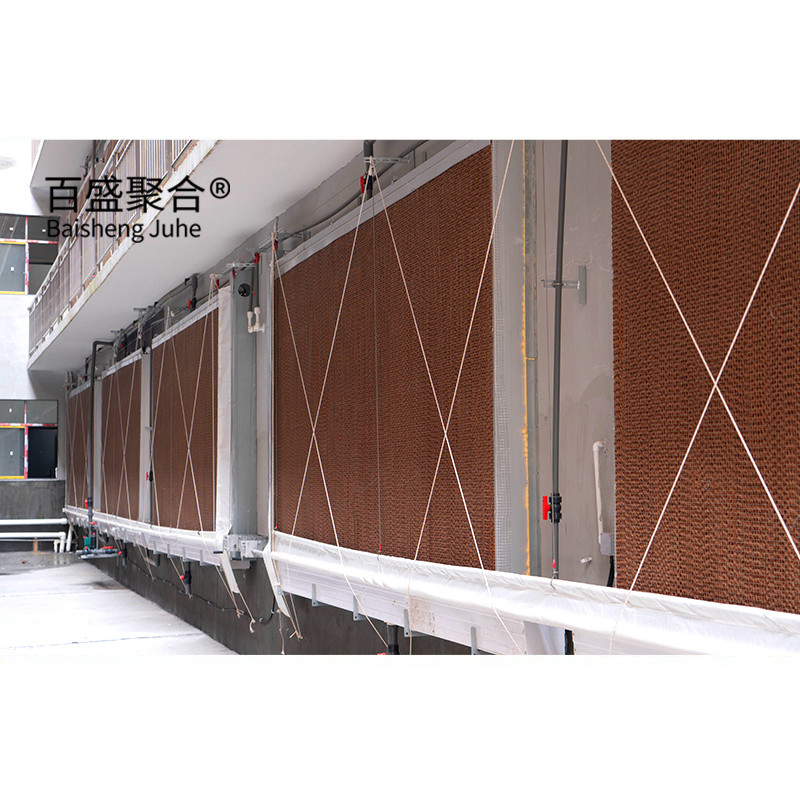

The evaporative module cooling system is very durable, set with either 10 cm or 15 cm thick evaporative cooling pads, frames made of stainless or galvanised steel. Greater farm dimensions can be controlled and cooled, achieving a better relationship between efficiency and investment.

Automatic Manure Removal System For Pigs

This automatic manure removal system is independently researched and developed by our company, its application in pig farm can greatly save labor work. More than 95% manure cleaning rate makes sure clean and safe environment for pigs.

Ventilation Fan

Advanced design:reasonable angle of blade without deformation and break makes sure maximum air flow.microcomputer aided manufacturing system allows the fan to achieve its best performance. High quality materials FRP used make sure highly corrosion-resistant of fans.

Technical Training

Equipment management application training

Ensure that employees master the knowledge of equipment management, ensure that equipment operates with high efficiency, long cycle, safety and economy.

Breeding management process training

Let employees master pig feeding, management, disease prevention and safety knowledge, etc., so that staff can lay the foundation for future work.

Equipment operation application training

Enable equipment operators to have a comprehensive understanding of the equipment, enhance their skills in maintaining and using the equipment, be fully competent in the work they undertake.

Delivery at Production Capacity

Sow farm

With the new farm Hunland is expected to increase their annual piglet production with approx. 120.000 piglets. The pig farm is being constructed on a location near the main office of Hunland in Bugyi. The buildings in the project contain a total usable floor surface of over 27.000 sqm, with room for 4.080 sows, 18.380 piglet places and 875 places for gilt production.

Operation and Maintenance

production process

Product display

Company Profile

Shandong Juhe Steel Co., Ltd. as one of the animal husbandry equipment company, which is concentrated on R&D, production, sales, installation, maintenance and other services. Its main products include pig stall system, feeding system, environmental control system, poultry equipment and other animal husbandry tools. The leader of our company has more than 10 years of rich experience in the breeding equipment industry, and established our own brand "BaiShengJuHe", aiming to provide professional and cost-effective one-stop service for modern farming.

Partner

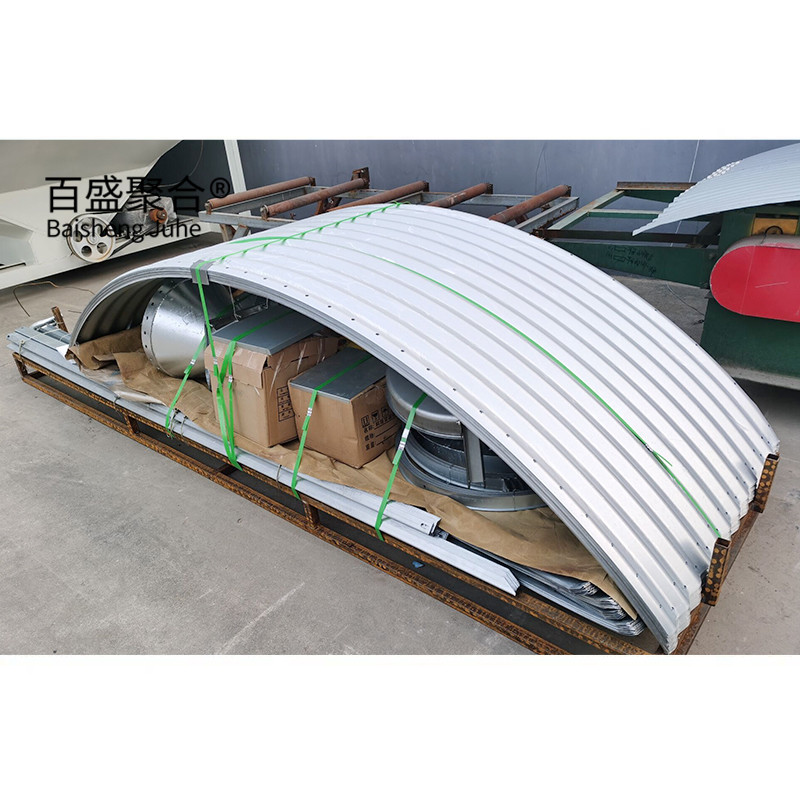

Packing and shipping

FAQ

Q1: Are you a factory? A: Yes,we are professional livestock equiptment manufacture in China, since 2006.

Q2.Can you print our logo or brand? A: Yes, We are welcome to cooperate with customized service

Q3.What is your delivery time? A: It denpend. Usually 100-500pcs in stock; If over 1000pcs, the delivery could be 15 days;

Q4: After set order, what service could you have? A: 1. One-stop visual production. The photos and videos will be provided to you on a regular basis; 2. Inspection report for each batch of order; 3. After-sales installation guide; 4. Long After-sale service, 5 years. 5. Promplty reply.

Q5: How do you control the quality? A: Our factory has get the ISO9001 quality certification. Our quality control department will do the inspect for each bath of order. All process strictly produce according to the

quality control system.

Q6: Why choose us? A: 1. More than 15 years experience in doing pig farm equipment; 2. Factory direct sale, Strict quality control and competitive price; 3. Strong after sell serivce, Video, photo and online live show the produce steps. Installation technical guidance.
