Long-span Grid Structure Prefab Modern Greenhouse Shed for Broiler Chicken Farming

500 square meters
MOQ
$30.00/square meters 500-9999 square meters
Price
Long-span Grid Structure Prefab Modern Greenhouse Shed for Broiler Chicken Farming
Features Gallery Product Description Request A Quote
Features
Specifications
Standard: ASTM
Grade: Steel
Type: Light
Application: Frame Part
Tolerance: ±1%
Processing Service: Bending, Welding
Delivery Time: 15-21 Days
Product Name: Steel Structure Building
Keyword: Steel Metal Frame Structure
Application Fields: Steel Structural Fabrication Construction
Material: Q235Q345 Low Carbon Steel
Surface Treatment: Painted
Window: Aluminum Alloy Window
Main Frame: Light Steel Q345 Q235
Structure Type: Long-span Grid Structure
Door: Roller Door
Purlin: C/Z Galvanized Steel(Q235)
Port: Qingdao Tianjin
High Light:

painted steel structure warehouse

,

painted steel structure livestock shed

,

roller door steel structure warehouse

Basic Infomation
Place of Origin: Shandong, China
Brand Name: Juhe
Payment & Shipping Terms
Packaging Details: standard export package to protect the goods or customer's requirement
Supply Ability: 20000 Ton/Tons per Month
Product Description
Products Description
Cheap new design broiler chicken house poultry farming prefab modern greenhouse shed large chicken coop farm for sale
Long-span Grid Structure Prefab Modern Greenhouse Shed for Broiler Chicken Farming 0
The steel structure buildings is a customized product. no matter small or large building, our engineers will help you design it. it is very popular to use in a variety of purposes including storage, work spaces and living accommodation. It is low cost than concrete building, easy installation, environment friendly, light weight, corrosion-proof, short construction time, longer life to use. We could give you suggestions according to your climate. We also could make totally according to your design. Prefabricated steel structure buildings including the main steel structures, secondary steel structures, cladding materials, window&doors, bolts etc. we will according your project to design and quote , will offer the low costs and stable building for you. Prefabricated steel structure cow shed use the high quality steel structure for the framework,steel sheet or sandwich panel for the wall/roof, this shed protects the cows from storm and rain.cold and warm, the cowshed can be small or large, we can customize the shed as per clients' requirements.
Specification
Items
Specification
Main Steel Frame
Column
Q235, Q355 Welded H Section Steel
Beam
Q235, Q355 Welded H Section Steel
Secondary Frame
Purlin
Q235 C and Z purlin
Knee brace
Q235 Angle Steel
Tie Rod
Q235 Circular Steel Pipe
Brace
Q235 Round Bar
Vertical and Horizontal Support
Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance system
Roof Panel
EPS Sandwich Panel / Glass Fiber Sandwich Panel /
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
Wall Panel
Sandwich Panel / Corrugated Steel Sheet
Accessories
Window
Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window
Door
Sliding Sandwich Panel Door / Rolling Metal Door
Rainspout
PVC
Live load on Roof
In 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade
12 Grades
Earthquake-resistance
8 Grades
Structure Usage
Up to 50 years
Finishing Options
Vast array of colors and textures available
Paint Options
Alkyd paiting, two primary painting, two finish painting
(Primer 、Medium paint 、top coat, epoxy zinc etc.) Or Galvanized.
prefabricated Steel Structure Design Livestock Farm Shed Goat /Cattle Farms cow shed Building poultry farms

1.Prefabricated steel structure building is manufactured and constructed using prefabrication.
It consists of factory-made components or units that are transported and assembled on-site to form the complete building.The building is made from welding H section steel as column and beam. Some buildings also have crane beam, which made from H steel beam too. Galvanized C, Z section steel are as wall purlin and roof purlin. Each component uses welds, bolts or rivets to connect. Wall and roof are made of metal steel sheet or sandwich panel. 2. Steel Structure House Advantages (1).Good in heat and sound insulation, good corrosion resistance and light weight; (2).Roofing and wall uses light sandwich panel or color single panel, which has good earthquake resistance and integration; (3).Multiple disassembly and assembly, with the rate of recovery up to 70%. 3.Steel Structure House Usage Steel structure is widely used in the construction site as temporary office, factory, warehouse, city office, civil resettlement,4S stores and other temporary buildings,etc.when you build a steel structure building, there are a lot of chooices for the type and apperance , For structure frame: you can make the building high and low span, lean to building, H section frame or tube frame ,hanrail, fence etc For the building coverage: you can choose brick wall height, single steel sheet, sandwich panel, skylight belt, ventilation fitting, out gutter, inner gutter, dow spout etc For the window and door: you can choose sliding door , electricity roller shutter door, swing door, exist, sliding window, swing window,top-hung window,vent etc 4.Production and processing Our steel structure building have many applications and uses. Workshop, warehouse, office building, multi-story building, hangar,garage, livestock farm,poultry farm ect. (1).Low cost, convenient (2).Easy assembly and disassembly many times without damage (3).Widely used in construction site, office building dom ect (4).Good environmental protection
Details Images
Long-span Grid Structure Prefab Modern Greenhouse Shed for Broiler Chicken Farming 1
Long-span Grid Structure Prefab Modern Greenhouse Shed for Broiler Chicken Farming 2
Features:
1. The frame adopts national standard hot-dip galvanized steel pipe or plastic-coated steel pipe, which has a long service life. 2. Specially designed connecting fasteners are easy to install and firm in structure. 3. Less investment, suitable for breeding. 4. Fans and water curtains with ventilation windows (sides) can better control the indoor environment.

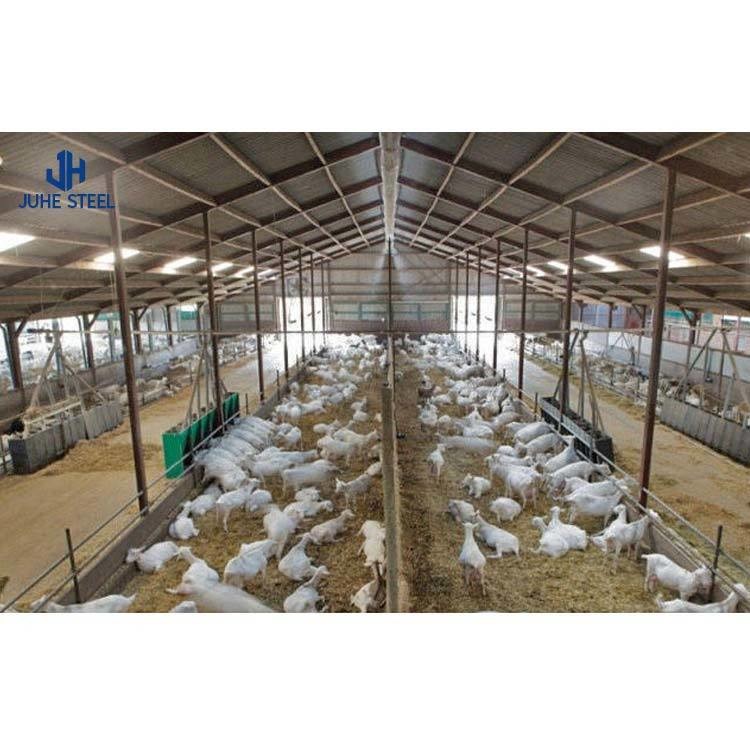

Steel structure livestock shed
Prefabricated Cow Farm House/Goat Farm Shed is a kind of light steel structure building. The frame of the building consists of H section steel columns, H section steel beams and C or Z section purlins. Generally there are two types of cow farm house/goat farm shed,open type and close type.Open type house usually has three walls,one side is open. Close type house has whole wall and roof, some windows on wall. You can choose which type of house you want, depending on your feeding requirements and local climate.
Long-span Grid Structure Prefab Modern Greenhouse Shed for Broiler Chicken Farming 3
Long-span Grid Structure Prefab Modern Greenhouse Shed for Broiler Chicken Farming 4
Why Choose Us to offer steel structure workshop building:

1.We have a group of professional engineers, most of whom has more than 10 years experiences in architecture field. our company has got a various of experiences in design, manufacture, installation and so on. The work staff have excellent skills. Some of them had helped customers to install the warehouse around the world. 2. We will offer one stop service. construction drawing,calculation sheet will be offered to help you get construction permit. Foundation design could be free made if you need. We could make 3D drawings to show the view. What's more, Installation drawings will be offered and Steel structure column,beams will be marked number on it to help you install. 3. We will send you extra bolts,purlins,panels incase any damage when install.
4. Efficiency is our pursuit. Every inquiry ,emails will be replied immediately. Every questions will be paid high attention. 5. We also have possessed more than 40 sets of large precise and domestically advanced processing equipments, including large gantry planing machines, automatic submerged arc welding machines, assembling machines, slitters, shot blasting machines and soon. 6.We will offer details packing list for every container when load so it will be easier to unload. 7. "Moral personality decides product quality." is our guarantee to the products. "Customers come first." is our everlasting pursuit. Believe your choose, we'll give you a satisfied answer.
Long-span Grid Structure Prefab Modern Greenhouse Shed for Broiler Chicken Farming 5

The introduction of the cowshed

A building where cattle are kept. Draft cowshed is relatively simple; And cow, the facility that meat uses cowshed, is more ready.Cattle farms generally adopt tethered feeding technology, feeding, drinking water and resting on fixed cattle beds in cattle sheds. Cattle shed outside the playground, there are generally supplementary feeding tanks, drinking tanks, and some rest arbor and other equipment.
Long-span Grid Structure Prefab Modern Greenhouse Shed for Broiler Chicken Farming 6

Classification of cattle sheds

According to the purpose of raising cattle can be divided into draft cattle shed, cow shed and meat shed. According to the requirements of herd feeding, it can be divided into calf barn, youth barn, mature barn, mature barn, producing barn, sick barn,bull barn, etc. Different cowsheds should be reasonably arranged and designed according to sanitary and epidemic prevention requirements and technological processes. Calves and young cattle can be raised in single stalls or open stalls. Breeding cattle,mature dairy cattle, producing cattle and sick cattle can be tethered or free-range respectively. Bulls should be kept separately.
Long-span Grid Structure Prefab Modern Greenhouse Shed for Broiler Chicken Farming 7
1. Primary Framing
Main steel frame is mainly composed of steel beams, steel columns, steel trusses and other components made of section steel and steel plate, and adopts rust removal and anti-rust process such as shot blasting, painting and galvanizing. Welding, bolts or rivets are usually used to connect each member or component. JUHE’s pre-engineered steel structure building is custom-designed to meet your exact requirements. The most common primary framing systems are shown below. Practically any frame geometry is possible. Consult JUHE for your specific requirements.
Long-span Grid Structure Prefab Modern Greenhouse Shed for Broiler Chicken Farming 8
2. Secondary Framing (Bracing, Z and C section purlin)
Purlin, tie bar and bracing are secondary structural members used to support the wall and roof cladding. Secondary members as purlin, tie bar, column bracing and horizontal bracing connect the main frame and help in resisting part of the longitudinal loads that are applied on the building such as wind and earthquake loads. Steel purlin is available in high grade steel conforming to GB/T 2518-2008, Q235B/Q345B Grade or equivalent, available in 1.8 mm. 2.0 mm, 2.2 mm, 2.5 mm and 3.0 mm thickness. The purlin come with a galvanized sheet. Column bracing is a connecting member set between two adjacent columns to ensure the overall stability of the building structure, improve lateral stiffness and transfer longitudinal horizontal force. Column bracing will be round steel or angle steel according to the building need.
Long-span Grid Structure Prefab Modern Greenhouse Shed for Broiler Chicken Farming 9
3.Roof and wall cladding system
JUHE offers a complete line of Roof and wall steel sheet, sandwich panel, and their related accessories, steel cover, trims, eave gutter, curved eave cover, wall flashing for a wide range of building applications.Variety of profiles, base metal, metal substrates and coatings for its sheet. The metal sheet are used as roof and wall panels, interior roof and partition panel, etc. Steel sheet, its base sheet is usually be galvanized sheet or aluminium zinc sheet with organic coating. It has the advantages of good corrosion resistance, bright color, beautiful appearance, convenient processing and forming, and has the original strength of the steel plate and low cost. The thickness of steel sheet usually be 0.3mm-0.7mm and used in different building and requirement. Sandwich panel is composite insulation panel made by two sides steel sheet and heat insulated core material through binder (or foam). The core can be EPS (polystyrene ), fiberglass wool, rock glass wool and PU (polyurethane), thickness 50mm, 60mm, 75mm, 100mm, 150mm, 200mm, etc.
Long-span Grid Structure Prefab Modern Greenhouse Shed for Broiler Chicken Farming 10
4. Steel Decking Floor
The pressed steel plates supporting the floor concrete are called profiled plates, also called floor bearing board. The steel decking board are widely used in multi-storey buildings such as power plant, exhibition hall, steel structure workshop, cement warehouse, steel structure office, airport terminal, railway station, stadium, concert hall, grand theater, large supermarket, logistics center, Olympic venues and sports venues and other steel structure buildings. It can adapt to the main steel structure rapid construction requirements, can provide a firm platform in a short time, and can take flow repetitive construction operation, laid a number of floors decking board, and pouring concrete slab.
Steel Structure
Long-span Grid Structure Prefab Modern Greenhouse Shed for Broiler Chicken Farming 11
Shandong Juhe Steel Co. LTD
Was founded in 2013. After more than 10 years of steady development, It has now become a high-tech, diversified, export-oriented international private enterprise integrating research and development, design, production, installation and construction and service. manufacture enterprises in China, also has waterproof anti-corrosion insulation engineering, construction curtain wall engineering, building engineering construction general contracting qualification, be included in the construction industry modernization production base in Shandong province. The core competitiveness of the company comes from the unremitting pursuit of technological breakthroughs. Now, there are more than 100 senior technical personnel of various kinds, and many universities and scientific research institutions to establish cooperative relations. With the help of internal and external intellectual resources, relying on steel structure, we continue to innovate in various aspects and achieve new breakthroughs.
Long-span Grid Structure Prefab Modern Greenhouse Shed for Broiler Chicken Farming 12
Long-span Grid Structure Prefab Modern Greenhouse Shed for Broiler Chicken Farming 13
Long-span Grid Structure Prefab Modern Greenhouse Shed for Broiler Chicken Farming 14

Customer Album

Long-span Grid Structure Prefab Modern Greenhouse Shed for Broiler Chicken Farming 15
Long-span Grid Structure Prefab Modern Greenhouse Shed for Broiler Chicken Farming 16
Long-span Grid Structure Prefab Modern Greenhouse Shed for Broiler Chicken Farming 17

Steel Structure fixed packing, loading, transportation, unloading the matters needing attention:

(1) The lifting large there must be a person responsible for the use of fixture, suitable, strictly abide by the
rules of lifting, to prevent the occurrence of vibration, impact, deformation or damage, fall in the hoisting process.

(2) At the time of loading, there must be a special supervision, check car number and packing, the car pile
up securely, and to increase the necessary binding component loosening, prevent the loss.

(3) Remained stable in the transport process, the vehicle at the time of shipment, on the long, wide, high object transport, must
be trained pilots, escort personnel responsible for, and mark is arranged on a vehicle.

(4) No rough handling, loading and unloading personnel handling, weight, size should be familiar with the components, and check the horse sling, rigging, prevent accidents.

(5) The member to the construction site, timely organization of unloading, stacking area.

(6) The crawler crane carrying member, should pay attention to the surrounding terrain, air condition, prevent the crawler crane overturning and component collision.
FAQ

Cheap new design broiler chicken house poultry farming prefab modern greenhouse shed large chicken coop farm for sale

Q1: How long does it take to get my building?
A: Lead time is vary, but typically 2 weeks of drawings and 6-8 weeks for delivery(depending on complexity)

Q2: What are the benefits of steel construction?
A: 1-Durable and with long lifespan.
2-Short construction period than concrete and wooden building.
3-Low cost and reusable.
4-High strength and light weight, has good seismic performance.
5-Widely used for multi-purpose buildings.

Q3: Why choose JU HE?
A: At JU HE, the customer is the first priority. We don't pull any gimmicks. We are veteran owned and
operated business, unmatched in customer service. We have more than 10 years of metal building experience. We are also very reputable manufacture and can answer your questions regarding any tape of construction project.We care about your needs and value your business.

Q4: How can l get the quotation of the project?
A: lf you have the drawing, we can offer you our quotation accordingly. lf youhave no design, our engineer will design for you to confirm. And then offer you a quotation.

Q5: Do you offer designing service for us?
A: Yes, we can provide full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (X steel) and etc. We can design complex industrial building like office building,
supermarket, auto dealer shop, shipping mall, hotel etc.

Q6: Do you provide samples?
A: Yes, we could offer the sample for free but do not pay for the cost of transportation.

Q7: What is your terms of payment ?
A: L/C, T/T, and Western Union.

Q8: How about your quality control?
A: We have our own professional quality control team with rich experience and advanced inspection equipment. Also we are willing to accept any other the third inspection part to control.

Q9: Can you provide the installation help?
A: We will provide detailed instruction photos and videos to you. If it is necessary,we will send professional engineers to do the construction guidance, and some skilled workers to help for installation. However, the visa fee, air tickets,accommodation, wages will be provided by buyers.

Dear Customer

If you have drawings, welcome to share drawings with us, quotation will be done based your drawings. Our excellent design team will design the steel structure workshop warehouse for you. If you give the following information, we will give you an satisfactory drawing.
1 Location (where will be built? ) which country? which city?
2 Size: Length*width* Eave height _____mm*_____mm*_____mm
3 wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. Snow height) _____kn/m2, _____mm, temperature range?
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high? or other?
7 thermal insulation If yes, EPS,fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quantity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. Lifting weight____tons; Max.Lifting height _____m
